Bevel Helical Gearbox
Right-angle gearboxes combining bevel and helical stages for heavy-duty conveying and mixing.
On request- StandardAGMA / ISO 6336 rating

Download specification sheet (PDF)
Helical gearboxes for smooth, quiet, high-load power transmission in industrial drives.
Every field is optional - tell us what you know and we will confirm the rest in the quotation.

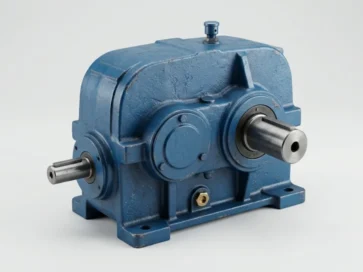

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Also searched as: helical reduction gearbox, inline helical gearbox, helical speed reducer, helical geared motor, parallel shaft helical gearbox
General helical gearboxes cover a wide range of industrial drives, so use a systematic approach: get the output torque from the machine, then apply a service factor, then check the thermal limit. Starting from motor kW alone is a common cause of early gear failure.
Other items to check on the quotation: backstop requirement, sealing for dusty or wet areas, and oil type. Mistakes include running the gearbox with a loose coupling that causes misalignment, and mixing mounting positions during installation so oil does not reach upper bearings. For heavier steel or cement duty, see the parallel helical gearbox. Unit size and ratings should be confirmed against the maker's catalogue.
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Oil quantity depends on the unit size and mounting position, and the maker's nameplate or manual gives the grade and level. Overfilling causes heating and leaks, underfilling starves bearings. Always check the level at the correct mounting position before commissioning.
Yes, in many applications, but the speed range must stay within what the gearbox lubrication and bearings can handle, and low-speed operation can reduce lubrication effectiveness. Tell us the minimum and maximum speeds so the selection can be checked.
A helical gearbox uses gears with angled teeth that engage gradually, so it runs smoother and quieter than a spur gear box and carries high loads. It is used for power transmission and speed reduction in industrial drives.
A helical gearbox has parallel shafts and a high efficiency of about 95 to 98 percent per stage. A worm gearbox gives a large reduction in one stage at right angles, with lower efficiency, and should not be relied on as a brake.
It is normally an industrial gear oil of the ISO viscosity grade specified by the maker, which depends on size, speed and operating temperature. Follow the nameplate and manual for the grade and oil level.
Send the motor kW, input speed, required output speed or ratio, output torque, service factor or hours of duty per day, mounting and shaft arrangement. Quotations are prepared within 24 hours of receiving these details.
| Gear Type | Helical |
|---|---|
| Standard | AGMA / ISO 6336 rating |
| Mounting | Foot / flange |
| Typical Efficiency | About 95 - 98 % per stage |
| Shaft Arrangement | Parallel shafts |
