Switchgear Panels

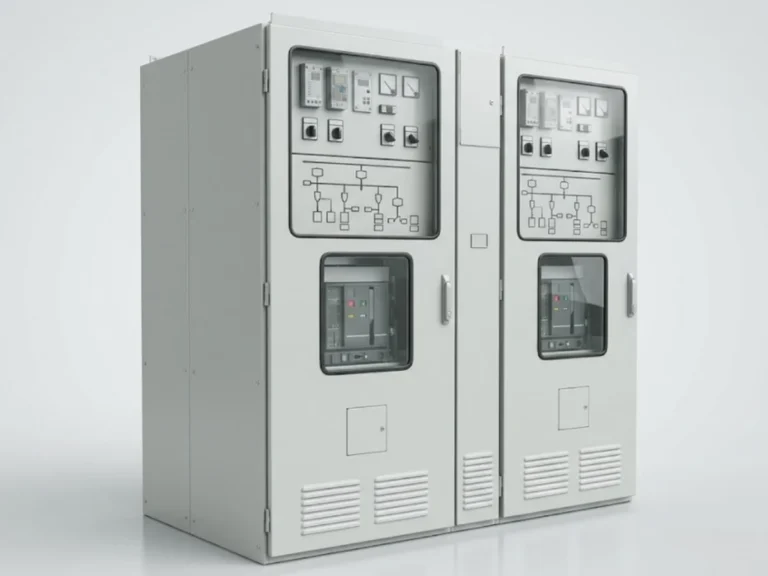

17.5 to 33 KV HT Panels
Indoor HT switchgear panels for 17.5 kV to 33 kV class distribution.
- StandardIEC 62271-200
- Voltage Class17.5 kV - 33 kV
Made to Order
Switchgear Panels
PCC, MCC, APFC, AMF and distribution panels engineered to IEC 61439.
Product list
Switchgear Panels

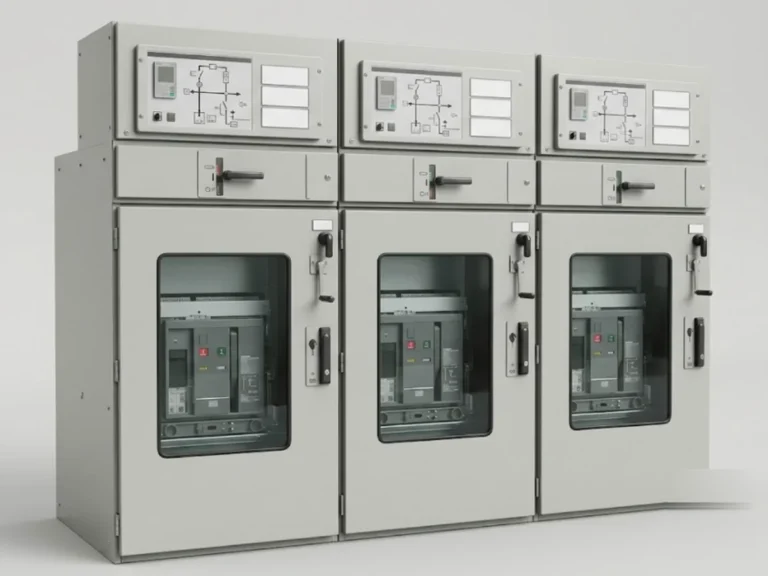

3.3 KV to 11 KV MV Panels
Metal-enclosed medium-voltage switchgear for motor starting and distribution from 3.3 kV to 11 kV.
- StandardIEC 62271-200
- Voltage Class3.3 kV - 11 kV
Switchgear Panels

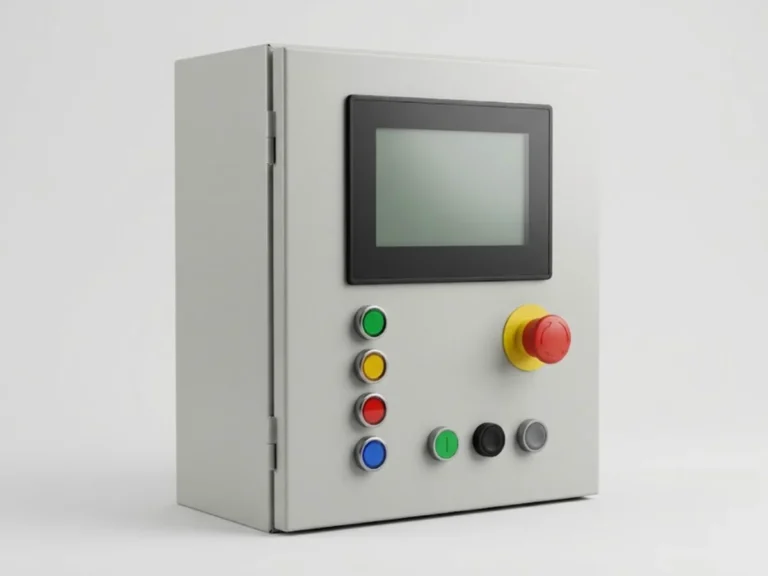

AMF Panel
Auto Mains Failure panels that start the generator and transfer the load automatically when mains power fails.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels

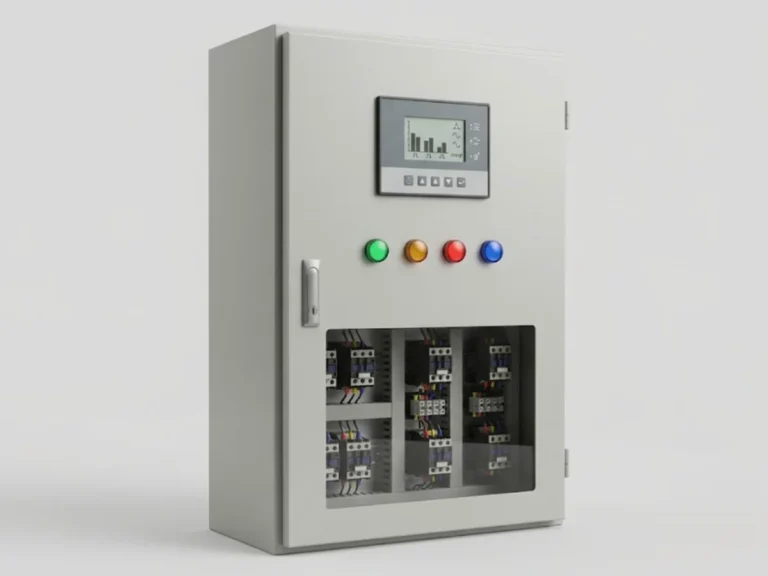

APFC Panel
Automatic Power Factor Correction panels that switch capacitor banks to hold power factor near unity and avoid utility...
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels

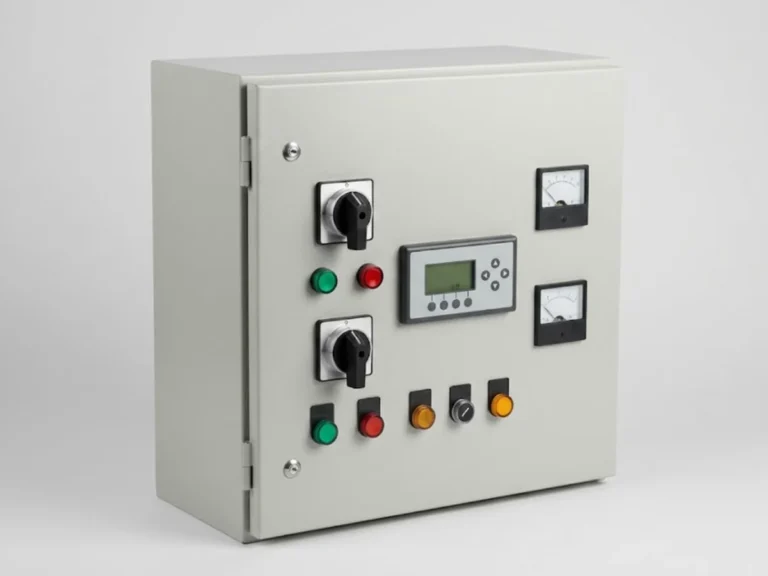

Auto Change Over Panel
Panels that transfer the load between two sources automatically with electrical and mechanical interlocking.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels
Bus Duct (up to 6300 Amps)
Sandwich and air-insulated busway systems carrying heavy current between transformers and panels with low losses.
- StandardIEC 61439-6
- Voltage ClassLT, up to 6300 A
IEC 61439
Switchgear Panels

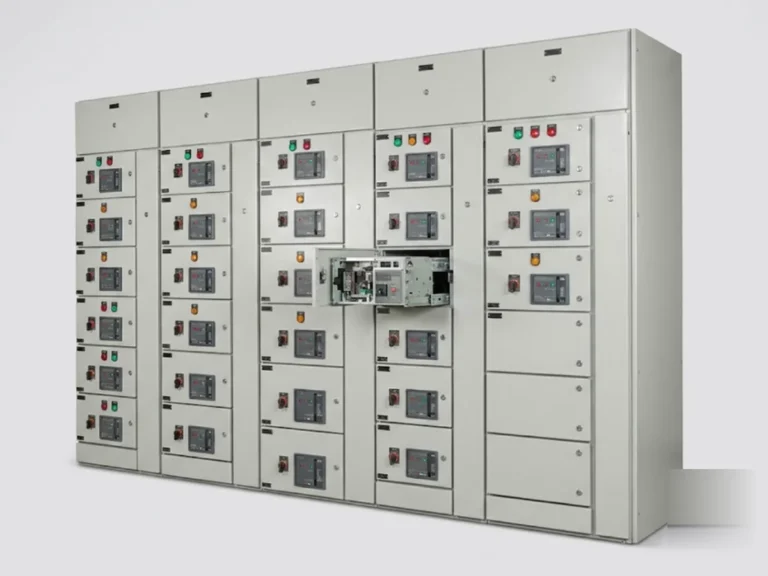

Drawout MCC Panel
Motor control centres with withdrawable feeder modules for fast replacement without shutting down the bus.
- StandardIEC 61439-1/-2, form of separation per spec
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels
Electrical Junction Box
Enclosures for cable terminations, branching and instrument signals in plant and field installations.
- StandardIEC 61439 / IEC 60529
- Voltage ClassLT / signal
IP55
Switchgear Panels
Feeder Pillar
Outdoor distribution pillars that branch cable feeders from a supply point to loads.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IP55
Switchgear Panels
Intelligent Motor Control Center (IMCC)
Networked motor control centres with intelligent relays and communication for monitoring and automation.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels

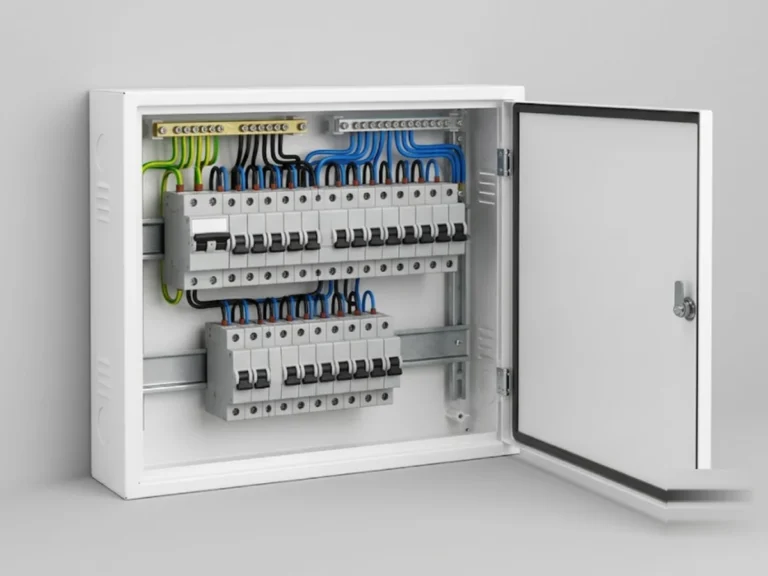

Lighting Distribution Board
Distribution boards that feed and protect lighting and small-power circuits.
- StandardIEC 61439-3
- Voltage ClassLT, 240 / 415 V
IEC 61439
Switchgear Panels
Low Voltage Panels
General low-voltage switchboards for incoming, bus-coupler and outgoing feeders.
- StandardIEC 61439-1/-2
- Voltage ClassLT, up to 690 V
IEC 61439
Switchgear Panels

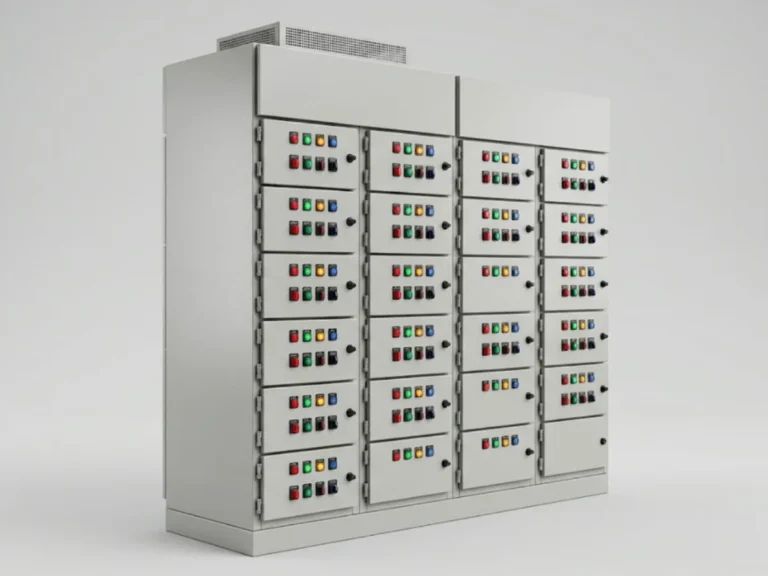

MCC Panel
Fixed-type motor control centres that group starters for several motors in one assembly.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels

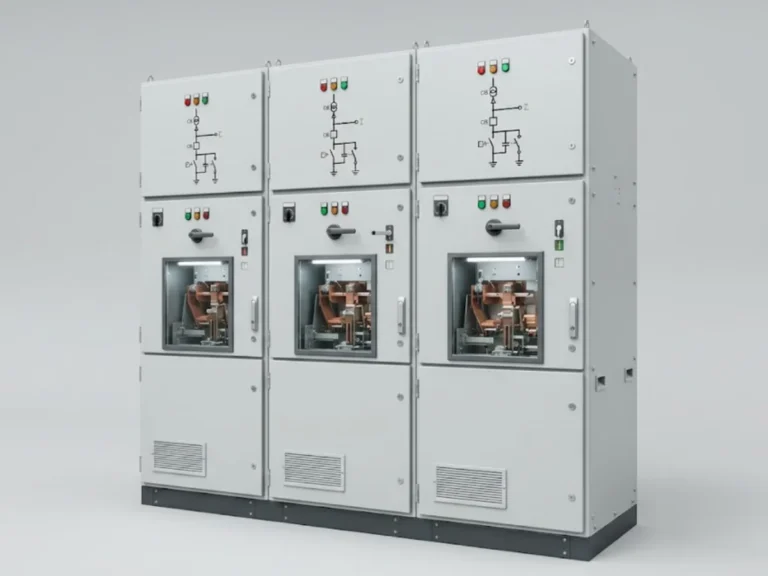

Medium Voltage Panels
Medium-voltage switchgear for plant incomers, feeders and HV motors.
- StandardIEC 62271-200
- Voltage Class3.3 kV - 33 kV
Switchgear Panels

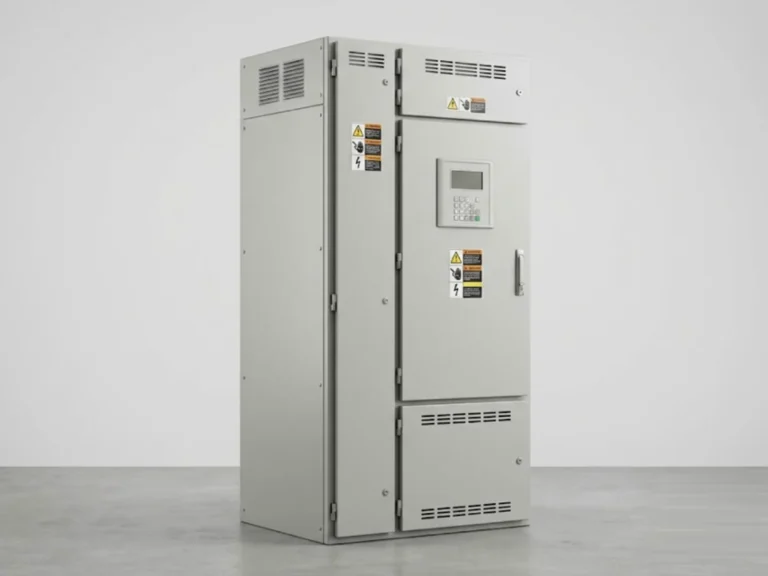

Medium Voltage Soft Starters
Medium-voltage solid-state soft starters for smooth acceleration of large HV motors.
- StandardIEC 60947-4-2 / IEC 62271
- Voltage Class3.3 kV - 11 kV
Made to Order
Switchgear Panels

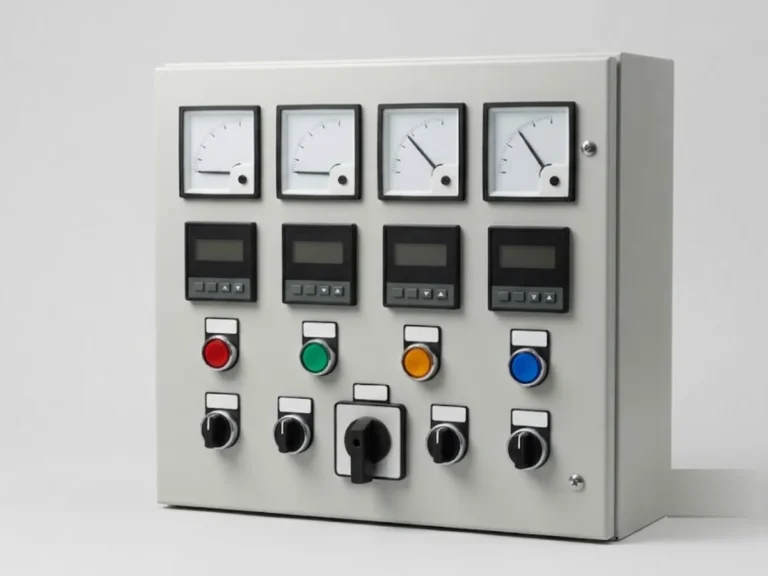

Meter Panel Board
Panels housing energy meters, CTs and test blocks for tariff and sub-metering.
- StandardIEC 61439
- Voltage ClassLT / HT metering
IEC 61439
Switchgear Panels
Neutral Grounding Resistor Panels
Resistor panels that limit earth-fault current at the transformer or generator neutral.
- StandardIEEE 32 / IEC 60076-25
- Voltage ClassLT to HT
Made to Order
Switchgear Panels

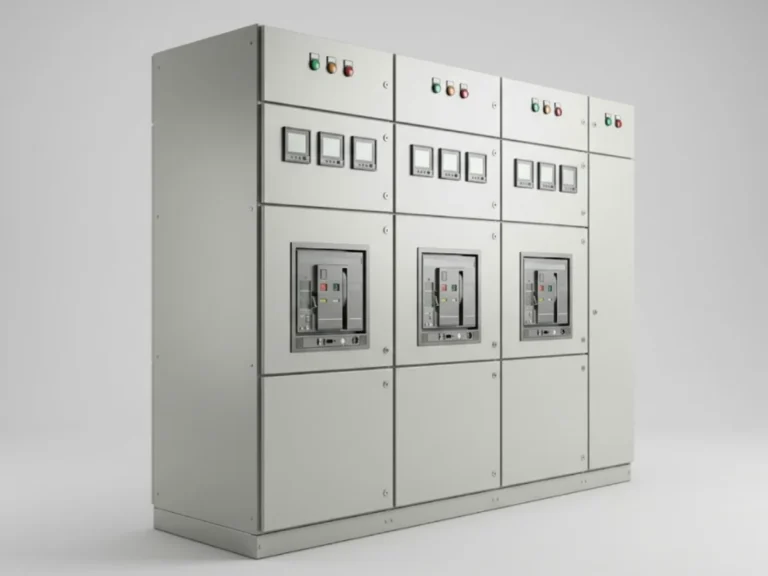

PCC Panel
Power control centres - the main LV switchboard fed from the transformer, distributing power to MCCs and large...
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels
Power Distribution Board
Distribution boards for sub-distribution of power to machines and sections.
- StandardIEC 61439-2/-3
- Voltage ClassLT, 415 V
IEC 61439
Switchgear Panels
Substation Equipment
Auxiliary equipment for substations: isolators, CTs, PTs, LAs, earthing and control items.
- StandardIS / IEC as applicable
- Voltage ClassLT to 33 kV
Made to Order
Switchgear Panels

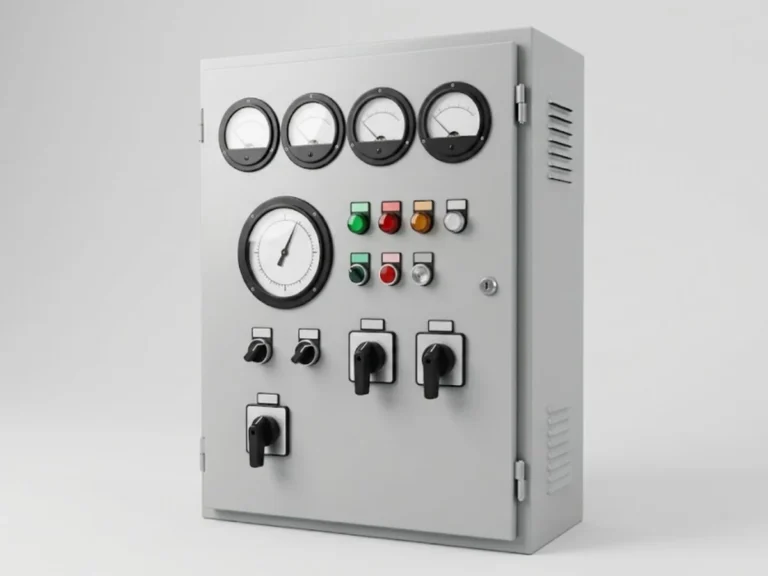

Synchronizing Panel
Panels that match voltage, frequency and phase so generators or sources can be paralleled safely.
- StandardIEC 61439-1/-2
- Voltage ClassLT, 415 V (HT on request)
IEC 61439
Switchgear Panels
VFD and Soft Starter Panel
Panels housing variable-frequency drives or soft starters with the associated protection and control.
- StandardIEC 61439-1/-2, IEC 61800
- Voltage ClassLT, 415 V
IEC 61439
Can't find what you need?We source other makes and special sizes, and make to your drawing.
Request a custom productNo products match your filters. or ask our engineers.
