Laminated Yoke DC Motors

DC motors with a laminated yoke for thyristor-converter fed drives, giving fast response and a wide speed range.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

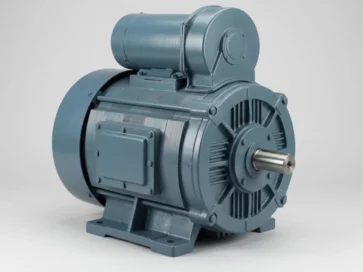

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: laminated frame DC motor, thyristor drive DC motor, converter fed DC motor, laminated yoke DC motor, DC motor with laminated field frame

Typical applications

  • Variable-speed process lines
  • Winders, extruders and printing
  • Test rigs and machine tools

Key features

  • Low-ripple operation on thyristor drives
  • Wide, smooth speed control
  • Tacho and encoder mounting options

Selection notes

A laminated yoke lets flux change quickly, so this motor is the proper partner of a thyristor converter. Selection starts with the process: speed range, torque or constant power region, acceleration time and any regenerative need.

  • Drive pairing: specify the armature and field supply from the DC drive and check form factor, as ripple affects heating and commutation.
  • Feedback: tacho or encoder mounting should be stated at order stage, since it changes the shaft end and cover design.
  • Cooling: low-speed operation reduces self-cooling; consider separate blower cooling for sustained torque at low rpm.
  • Winders and extruders: check torque stability and overload.

Mistakes include forgetting to supply a smoothing reactor where recommended, selecting the wrong rated speed relative to base speed, and ignoring brush wear on long continuous duty. Machine tools and test rigs need smooth low-speed running, so state the minimum speed. For high peak loads such as rolling mills, see mill duty DC motors. Confirm the final match with a qualified engineer.

To quote, please share

  • Rated power (kW) and speed / poles
  • Supply voltage, frequency and starting method (DOL / star-delta / soft starter / VFD)
  • Mounting arrangement, frame and shaft details
  • Enclosure, ambient temperature and hazardous-area classification
  • Duty cycle (continuous / intermittent) and load type

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the advantage of a laminated yoke?

The laminated magnetic circuit lets the field respond quickly and tolerates the current ripple of thyristor converters with less heating. That gives better dynamic response and smoother control than a solid frame, which suits process lines, winders and test rigs.

Do I need a tacho or encoder on a DC motor?

Many closed-loop speed drives use a tachogenerator or encoder for feedback, though some drives can use armature voltage feedback with lower accuracy. State the feedback type at order stage so the mounting provisions are included.

What is a laminated yoke DC motor?

A laminated yoke DC motor has a stator yoke made of thin steel laminations instead of solid steel. This suits operation from thyristor converters, which supply a pulsating DC, and gives fast response and a wide speed range.

Why is a laminated yoke used in DC motors?

The converter supplies DC with a ripple. A solid yoke would develop eddy currents and slow the flux response to that ripple, while a laminated yoke limits eddy currents and responds faster to changes in field or load.

What is the difference between laminated yoke and solid yoke DC motors?

Solid yoke motors are normally used on pure DC supply. Laminated yoke motors are designed for converter-fed drives where fast speed and torque response are needed. Choose according to your supply and drive.

What details are needed for a laminated yoke DC motor quotation?

Send the power in kW, armature voltage, speed in rpm, field voltage, duty, enclosure (IP23 or IP55), mounting and converter details. Price depends on rating, make and quantity, so send details for a quotation, which SKE Bharat prepares within 24 hours.

Technical specification

Motor TypeDC, laminated yoke
StandardIS 4722 / IEC 60034
Enclosure / ProtectionIP23 / IP55
MountingFoot / flange
DutyS1 / S2 / S3
Voltage ClassDC armature, converter fed
RotorWound armature
