DC Drives

Thyristor DC drives for speed control of DC motors in rolling mills, cranes and process lines.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

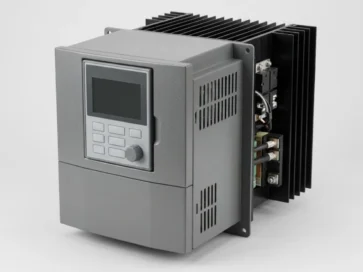

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: DC drive, thyristor DC drive, DC motor speed controller, DC motor drive, regenerative DC drive, DC drive for rolling mill

Typical applications

  • Steel and rolling mills
  • Cranes and hoists
  • Retrofit of DC motor lines

Key features

  • Four-quadrant versions
  • Field control
  • Tacho or encoder feedback

Selection notes

Begin with the motor nameplate: armature voltage and current, field voltage and current, base speed, and the feedback device. The drive's armature current rating must cover the motor's rated current at the duty, and the supply must give the right DC output; a 415 V three-phase AC supply is commonly used for 500 V-class armature motors, so confirm with the motor data.

  • Quadrants: a two-quadrant (single-bridge) drive motors in both directions only with contactors; a four-quadrant (anti-parallel bridge) drive can regenerate and reverse electronically, which cranes and rolling lines often need.
  • Feedback: tacho or encoder feedback gives accurate speed regulation; armature-voltage feedback is simpler but less precise at low speed.
  • Field control: a separate field regulator allows field weakening above base speed, with limits set by the motor.
  • Protection: use fast semiconductor fuses and a line reactor or isolation transformer as per the drive manual.

When retrofitting an old line, check motor insulation condition, commutator and brush state, and existing interlocks. Confirm your selection with a drives engineer. See also drives and motor starters and AC drives if you are considering motor replacement.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is a four-quadrant DC drive?

It can drive a motor in both directions and brake it by returning energy to the supply, giving full control in forward and reverse, driving and regenerating. It suits cranes, hoists and lines with frequent reversing. A two-quadrant (single-bridge) drive needs contactors or field reversal to change direction.

Should I replace a DC drive and motor with an AC drive?

Often considered because AC motors need less maintenance. The decision depends on the load, required torque at low speed, the cost of replacing the motor and mechanical changes. Keep the existing motor if it is sound and the DC drive meets requirements.

What is a DC drive?

A DC drive is an electronic controller that varies the speed of a DC motor by controlling the voltage applied to the armature, and usually the field. Thyristor based drives are used for DC motors in rolling mills, cranes and process lines.

What is the difference between a DC drive and an AC drive?

A DC drive controls a DC motor by changing its armature voltage. An AC drive (VFD) controls an AC motor by changing the frequency and voltage. The choice follows the type of motor already installed or required.

What is the difference between regenerative and non-regenerative DC drives?

A non-regenerative drive can drive the motor in one direction of power flow. A regenerative drive can also return braking energy to the supply and run in both directions, which suits applications that need fast reversal or braking.

What details are needed for a DC drive quotation?

Send the motor armature voltage and current, field voltage and current, supply voltage, whether regenerative or non-regenerative, and control interface needed. The motor nameplate details are helpful. SKE Bharat will prepare a quotation from these details.

Technical specification

Product TypeDC drive
StandardIEC 61800-1
Selection BasisArmature voltage and current, field supply, regenerative or non-regenerative, control interface
Typical UseDC motor speed control
