Load-break switches and isolators for safe isolation of circuits and equipment.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

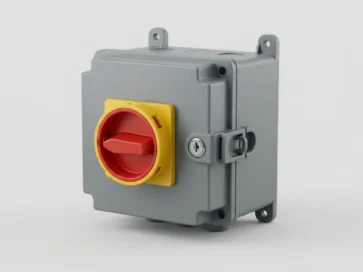

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: isolator switch, switch disconnector, load break switch, panel door isolator, electrical isolator, main isolator

Typical applications

  • Main isolators in panels
  • Local isolators beside motors
  • Solar DC isolation

Key features

  • Door-mounted rotary handles
  • Lockable in OFF position
  • Enclosed and open types

Selection notes

An isolator provides safe isolation, and a switch-disconnector can also break load current. Check the utilisation category on the nameplate: AC-22 and AC-23 ratings tell you whether the device can switch mixed or motor loads, not just isolate. For motor isolators the AC-23 rating is the relevant one.

  • Current and short-circuit rating: choose the continuous rating above the load, and check short-time or conditional short-circuit withstand against the fault level.
  • Handle and padlocking: door-interlocked rotary handles that lock in the OFF position support lock-out and tag-out routines; confirm the handle and shaft length match the enclosure.
  • Solar DC isolation: for PV circuits you need a DC-rated isolator with the right voltage and current rating and the correct poles in series, not an AC unit.
  • Enclosure: choose enclosed versions with a suitable IP rating for outdoor or dusty locations.

Mistakes include using an off-load isolator to break current, undersizing for motor starting, and omitting auxiliary contacts for interlocking. Add fuses where needed, using fuse switch units. For solar combiner work, see AC combiner boxes.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the difference between an isolator and a switch disconnector?

An isolator provides a visible, secure separation of the circuit and is not necessarily meant to break current. A switch disconnector can make and break load current as well as isolate. Check the utilisation category on the device.

Can I use an AC isolator on a solar DC circuit?

No. DC arcs are harder to extinguish, and AC devices are not rated for DC. Use an isolator specifically rated for DC with the voltage, current and number of poles specified for the PV string or array.

What is an isolator switch and what does it do?

An isolator switch is a manually operated switch used to disconnect a circuit or equipment from the supply so that work on it can be done safely. A switch disconnector can also make and break normal load current.

What is the difference between an isolator switch and an MCB or MCCB?

An isolator only isolates the circuit and does not trip on overload or short circuit. An MCB or MCCB trips automatically on overload and short circuit, and also isolates. An isolator is normally used with protective devices upstream.

Should an isolator switch be kept on or off?

It is kept on during normal running and switched off only to isolate the circuit, for example for maintenance. Operate it under load only if it is rated as a load-break switch disconnector, and lock it off when working downstream.

How do I select an isolator switch?

Select the current rating and number of poles, 3 or 4, the utilisation category for your load, such as motors, and the mounting, panel door or base. SKE Bharat, Rajaji Nagar, Bangalore, sends a quotation within 24 hours.

Technical specification

Product TypeIsolator / switch disconnector
StandardIEC 60947-3
Selection BasisCurrent rating, poles, panel-door or base mounting, enclosure
Typical UseIsolation of feeders, motors and equipment
