High-rupturing-capacity fuse links, fuse bases and fuse switch units for short-circuit protection.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

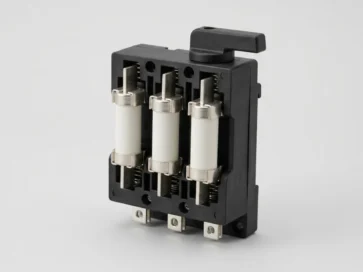

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: HRC fuse, HRC fuse link, fuse switch unit, HRC fuse base, gG HRC fuse, aM motor fuse

Typical applications

  • Feeder protection
  • Motor circuits (aM)
  • Drive and semiconductor protection (gR)

Key features

  • Wide current range
  • Indicator and striker options
  • Fuse switch units with isolation

Selection notes

The letters on a fuse link tell you what it protects. The gG class is for general cable and feeder protection against overload and short circuit. aM links protect only against short circuit in motor circuits and need a separate overload relay. gR and aR links are for semiconductor protection such as drives, soft starters and rectifiers.

  • Size and base: NH fuse links come in standard sizes such as NH00, NH1, NH2 and NH3, each with a current range; the base and fuse switch must match the size.
  • Voltage and breaking capacity: check rated voltage and breaking capacity (kA) against the fault level at the installation point.
  • Indicators and strikers: useful for spotting a blown fuse or for tripping a switch-disconnector on one blown phase.
  • Coordination: for drives and soft starters, use the fuse type the drive manufacturer specifies.

Common errors: replacing a blown fuse with a higher rating, using aM fuse as the only motor protection, and ignoring heating in tightly packed fuse bases. Replace all three phases when one blows if the maker advises. Related products: thermal overload relays and isolators.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the difference between gG and aM fuses?

A gG fuse protects against both overloads and short circuits on cables and general feeders. An aM fuse only protects against short circuits and is used in motor circuits where a separate overload relay covers overload and the fuse tolerates starting current.

Can I replace a blown HRC fuse with a higher rating?

No. A higher rating can leave the cable or equipment unprotected and may be unsafe. Find and clear the cause of the failure, then fit the correct rating, class and size. Confirm unusual cases with your electrical engineer.

What is the full form of HRC fuse?

HRC stands for High Rupturing Capacity. It is a fuse that can safely interrupt very high short-circuit currents. The fuse element sits in a sealed ceramic body filled with quartz sand, which cools and extinguishes the arc.

How does an HRC fuse work?

When a fault current flows, the fuse element melts and an arc forms. The sand filling absorbs the energy and quenches the arc, so the current is cut off. The fuse link works once and is replaced after it operates.

What are the types of HRC fuse?

Common types are gG for general protection of cables and circuits, aM for motor circuits where overload is covered by a separate relay, and gR for semiconductors. They are also made in different sizes, as fuse links, bases or fuse switch units.

Who supplies HRC fuses in India?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the details you send: fuse type, current rating, size, voltage and whether bases or fuse switch units are needed. Quotation within 24 hours.

Technical specification

Product TypeHRC fuse / fuse switch unit
StandardIEC 60269
Selection BasisFuse type (gG / aM / gR), current rating, size / frame, fuse base or switch unit
Typical UseShort-circuit protection of feeders and semiconductors
