Changeover Switches
Changeover Switches

Download specification sheet (PDF)

Switching & Control DevicesSKU SKE-SWC-009

Changeover Switches

Reference price
₹2,285 excl. GST
*For reference only, based on market listings for similar products. The actual price is confirmed in our quotation. Please send an RFQ for an exact price.

Manual and motorised changeover switches for transfer between two supplies, such as mains and generator.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

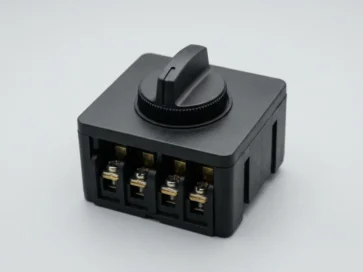

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: COS switch, mains generator changeover switch, manual changeover switch, automatic changeover switch, on load changeover switch, transfer switch

Typical applications

  • Generator changeover
  • Dual-supply feeders
  • Commercial and industrial buildings

Key features

  • Two- and three-position types
  • Motorised versions for ATS
  • Interlocked operation

Selection notes

The two critical choices are the number of poles and the switch rating. Use a four-pole switch if the neutral must be switched between mains and generator, which avoids neutral paralleling; many installations use three-pole switching with a solid neutral, so follow the earthing scheme and confirm with an engineer. The current rating should cover the full load, with the utilisation category suited to the load, since inductive loads need more than resistive ones.

  • Manual or motorised: manual switches suit small sites; motorised versions with an ATS controller give automatic transfer on mains failure and need coil voltage and control interlocks.
  • Two-position or with OFF: a centre OFF position lets you isolate both sources and is safer for maintenance.
  • Interlock: the mechanism must prevent the mains and generator being connected at once, because back-feeding is dangerous to the grid and to people.

Check generator size and starting current before selecting. Mistakes include undersized switches on generator loads and forgetting the transfer delay setting. Panels are available as auto change over panels and AMF panels.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

Should a changeover switch be three-pole or four-pole?

It depends on the earthing and neutral arrangement. Four-pole switching also transfers the neutral and is common where the generator neutral is separately earthed. Three-pole with a solid neutral is used in other systems. Confirm the scheme with your electrical engineer.

What is the difference between manual and automatic changeover?

A manual changeover is operated by hand when power fails. An automatic or motorised changeover, with an ATS controller, senses mains failure, starts the generator and transfers the load without operator action, usually with set time delays.

What is a changeover switch used for?

A changeover switch transfers a load between two supplies, most commonly mains and a generator, so that only one supply feeds the load at a time. It prevents the two sources from being connected together.

What are the types of changeover switch?

They are broadly manual and motorised. A manual switch is operated by hand, while a motorised or automatic changeover uses a motor drive and a controller to transfer on supply failure. Poles and neutral arrangement vary by application.

What is the difference between a changeover switch and a bypass switch?

A changeover switch selects between two supplies. A bypass switch is used with equipment such as a UPS or automatic transfer scheme so the load can be fed directly while the equipment is isolated for maintenance.

How do I select a changeover switch and what details are needed for a quotation?

Select by load current, number of poles, with or without neutral switching, and manual or motorised operation. Send these details with quantity and make preference. Quotations are prepared from the details you send, so share your requirement and SKE Bharat will respond within 24 hours.

Technical specification

Product TypeChangeover switch
StandardIEC 60947-3, IEC 60947-6-1
Selection BasisCurrent rating, poles, manual or motorised, with or without neutral
Typical UseMains to generator transfer
