Power Contactors
Power Contactors

Download specification sheet (PDF)

Switching & Control DevicesSKU SKE-SWC-006

Power Contactors

Reference price
₹2,838 excl. GST
*For reference only, based on market listings for similar products. The actual price is confirmed in our quotation. Please send an RFQ for an exact price.

AC and DC contactors for switching motors and other loads, with auxiliary contacts and coil options.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

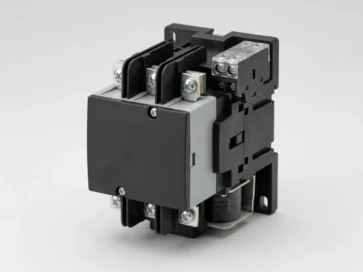

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: power contactor, electrical contactor, AC contactor, motor contactor, magnetic contactor, 3 pole contactor

Typical applications

  • Direct-on-line and star-delta starters
  • Capacitor and heater switching
  • Control panels

Key features

  • AC and DC coil versions
  • Auxiliary contact blocks
  • Mechanical interlock kits for reversing

Selection notes

Choose the contactor by utilisation category, not just by current. AC-3 describes starting and stopping squirrel-cage motors, AC-1 is for resistive loads such as heaters, and AC-4 covers plugging and inching duty, which is much harder on the contacts. The same frame has a lower current rating in AC-4 than in AC-3.

  • Coil: pick the coil voltage and type (AC or DC) to match your control supply, and check the operating voltage band so the contactor pulls in during voltage dips.
  • Auxiliary contacts: add blocks for interlocking and indication; count normally open and normally closed contacts needed.
  • Special duty: capacitor switching needs contactors with inrush-limiting resistors; heavy duty starts need a higher size.
  • Star-delta: needs three contactors with mechanical or electrical interlock to prevent line and star closing together.

Common mistakes are selecting by kW only, ignoring contact life under frequent starts, and fitting no suppressor across DC coils. Pair with a thermal overload relay and use the switching and control devices range for the rest of the starter.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What does AC-3 mean on a contactor?

AC-3 is the utilisation category for starting and stopping squirrel-cage induction motors. The kW or ampere rating at AC-3 is the one to compare for motor starters. Other categories, such as AC-1 or AC-4, have different current ratings.

Can I use a normal contactor to switch a capacitor bank?

Standard contactors can weld or wear out quickly because of the high inrush current when a capacitor is switched in. Use contactors designed for capacitor duty, or add inrush-limiting resistors or reactors, as the contactor manufacturer advises for your bank.

What is a power contactor and what is it used for?

A power contactor is an electrically operated switch. When its coil is energised, the main contacts close and carry the load current. It is used to switch motors and other loads, commonly in DOL and star-delta starters.

What is the difference between a power contactor and an auxiliary contactor?

A power contactor has main contacts rated to carry the load current of a motor or other load. An auxiliary or control contactor has small-current contacts used in control circuits for signalling, interlocking and switching other coils.

How do I select a power contactor for a motor?

Select by the motor rated current and the utilisation category, AC-3 for squirrel cage motors. Then check the coil voltage, number of poles and auxiliary contacts needed. A contactor does not protect the motor, so add an overload relay and short-circuit protection.

Where can I buy power contactors in Bangalore?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the ratings you send: motor kW or current, coil voltage, number of poles and preferred make. Quotation within 24 hours.

Technical specification

Product TypeContactor
StandardIEC 60947-4-1
Selection BasisRated current (AC-3 / AC-1), coil voltage, number of poles, auxiliary contacts
Typical UseMotor starters and load switching
