Centrifugal Pumps
Centrifugal Pumps

Download specification sheet (PDF)

Pumps & ValvesSKU SKE-PMP-002

Centrifugal Pumps

General-purpose centrifugal pumps for transferring clean water and light liquids in industry and buildings.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

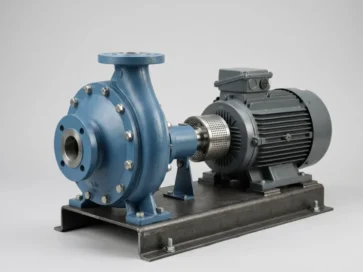

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: centrifugal pump, centrifugal water pump, monoblock pump, horizontal centrifugal pump, industrial water pump

Typical applications

  • Water supply and transfer
  • Cooling and circulation
  • Building services

Key features

  • Wide flow and head range
  • Close-coupled or base-mounted
  • Standard and special materials on request

Selection notes

Centrifugal pumps cover many designs, so the first decision is which type fits your duty: end-suction for general water, split-casing for large flows, multistage for high head, vertical or submersible when the source is below the pump. Use the head and flow to narrow the field before comparing models.

Two rules save money. First, affinity laws: flow changes in proportion to speed, head with the square of speed and power with the cube. Reducing speed by 10 percent cuts power to about 73 percent, which is why a drive pays back on variable-flow systems.

  • Do not use a clear-water pump for slurries, sewage or strong chemicals; use a purpose-built type.
  • Check that NPSH available exceeds the requirement with a margin.
  • Avoid throttling for flow control where a drive or trimmed impeller will do.

See the CE end-suction pump, the vertical inline multistage pump or the UP split-casing pump for specific designs, and estimate savings with the VFD energy savings calculator.

To quote, please share

  • Flow rate and total head (or pressure)
  • Fluid, temperature and solids content
  • Suction conditions (NPSH available, flooded / lift)
  • Motor / drive preference and supply voltage
  • Materials of construction and any approvals required

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

How much energy does reducing pump speed save?

Power varies roughly with the cube of speed, so a 20 percent speed reduction cuts power to about half. Real savings depend on how much static head the system has, because the affinity laws apply to friction-dominated systems best.

What is NPSH and why does it matter?

NPSH is the suction pressure margin above vapour pressure. If the available NPSH falls below what the pump needs, bubbles form and collapse inside the impeller, causing noise, damage and loss of flow. Check this margin at the highest flow and highest liquid temperature you expect.

Which pump type should I choose?

Choose by head, flow and liquid: end-suction for general water, split-casing for large flow, multistage for high head, submersible for wells and sumps. Our team can confirm the type from your duty data. We can also point you to alternatives when the liquid is dirty, hot or corrosive.

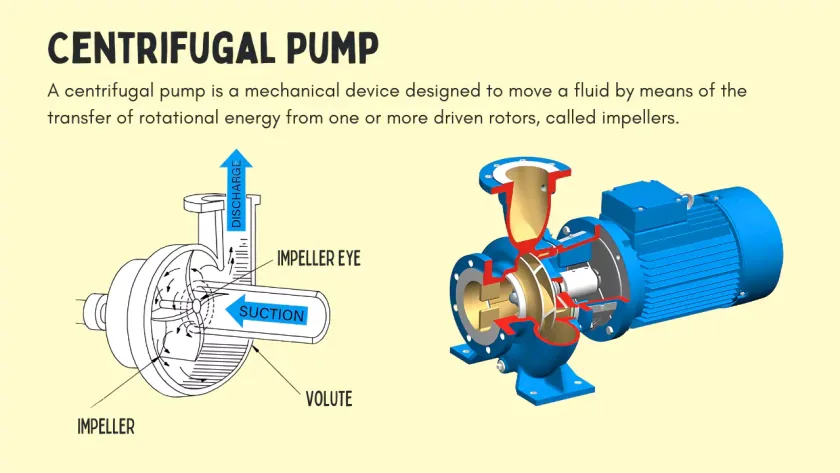

How does a centrifugal pump work?

A motor turns the impeller inside the pump casing. Liquid enters at the centre of the impeller and is thrown outward, gaining speed. The volute casing then converts this speed into pressure, which pushes the liquid out through the discharge.

What are the types of centrifugal pump?

Centrifugal pumps are classed by impeller type (open, semi-open or closed), by stages (single or multistage), by layout (horizontal or vertical) and by drive arrangement, monoblock or coupled to a separate motor.

What are centrifugal pumps used for?

General-purpose centrifugal pumps are used for transferring and circulating clean water and light liquids in industry and buildings, for example water supply, cooling water circulation and process water transfer. Slurries and viscous liquids need a pump selected for that duty.

Who supplies centrifugal pumps in India?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the details you send: flow, total head, liquid, motor supply and monoblock or coupled type. Quotation within 24 hours.

Technical specification

Pump TypeCentrifugal
StandardIS 1520 / ISO 9906 (performance)
Typical ServiceClean water transfer, circulation
OrientationHorizontal
DriveElectric motor (coupled or monoblock)
