End Suction (CE)

End-suction centrifugal pumps of the CE series for water supply and process duties.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

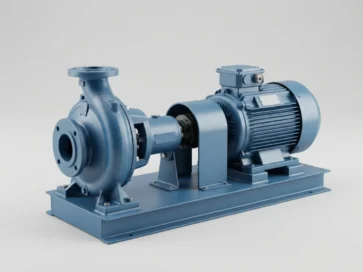

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: CE series end suction pump, end suction centrifugal pump, end suction centrifugal water pump, horizontal end suction pump, ISO 2858 end suction pump

Typical applications

  • Water supply
  • Process circulation
  • Cooling systems

Key features

  • Wide capacity range
  • Standard and special materials
  • Easy maintenance

Selection notes

Pick the CE pump from its curve, not from the motor kW alone. Mark your flow and total head on the performance chart and look at where the point falls: ideally near the best efficiency point, with the impeller trimmed to meet the head rather than an oversized pump throttled back.

  • Calculate head as static lift plus friction in suction and delivery lines, plus the pressure needed at the end point.
  • Impeller trimming lowers head and power with a smaller diameter, which is often cheaper to run than throttling a valve.
  • Choose 2-pole for higher head per stage, or 4-pole for gentler running and longer seal life where head allows.
  • Verify NPSH available with suction pipe size and any lift.

Common errors include undersized suction pipes, long horizontal runs with air traps, and no isolation valves for servicing. For a similar duty in other frame sizes, the DB / DB Large series and the CPHM series are worth comparing, and process-oriented sets are covered by the KPD process pump.

To quote, please share

  • Flow rate and total head (or pressure)
  • Fluid, temperature and solids content
  • Suction conditions (NPSH available, flooded / lift)
  • Motor / drive preference and supply voltage
  • Materials of construction and any approvals required

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

Why trim the impeller instead of throttling?

Trimming the impeller reduces head and power permanently, so the pump runs closer to its best efficiency point and saves energy. Throttling adds artificial friction and wastes power. Trim limits come from the pump manufacturer.

What is the best efficiency point?

It is the flow at which the pump runs most efficiently with the lowest internal loading. Operating well away from it increases vibration, wear and energy use. Selection should aim to keep the normal duty point close to it.

What causes poor performance in a new end-suction pump?

The usual causes are an undersized or leaking suction line, air pockets, wrong rotation, partly closed valves, or a duty point different from the design assumption. Check the suction side first. Comparing measured flow and pressure with the curve using gauges shows whether the duty point is wrong.

What is an end suction centrifugal pump?

It is a centrifugal pump in which the liquid enters at the end of the casing, along the shaft axis, and leaves through a discharge at the top or side. It is a common choice for water supply and general process duties.

What specifications should I check for an end suction centrifugal pump?

Check the flow, total head, liquid and temperature, suction condition, motor rating, speed and power supply. For process duty also check materials and the shaft sealing arrangement. These fix the model and impeller size.

Who supplies end suction centrifugal pumps in India?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the ratings you send, so share your requirement and we will respond within 24 hours.

What is the difference between coupled and monoblock versions?

In a coupled pump the pump and motor have separate shafts joined by a coupling. In a monoblock pump the impeller is fitted on the motor shaft, which is more compact. The CE series is listed with either drive.

Technical specification

Pump TypeEnd suction centrifugal
StandardISO 2858 / ISO 5199 (typical)
Typical ServiceWater supply and process
OrientationHorizontal
DriveElectric motor (coupled or monoblock)
