Soft Starters

Electronic starters that ramp motor voltage for smooth starting and reduced mechanical and electrical stress.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

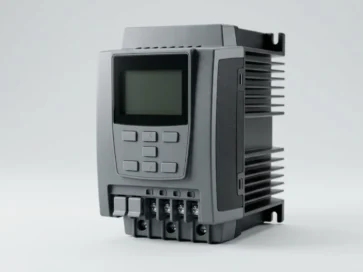

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: soft starter, motor soft starter, soft starter for 3 phase motor, electronic motor starter, soft start for motor, reduced voltage motor starter

Typical applications

  • Pumps and compressors
  • Fans and blowers
  • Conveyors

Key features

  • Adjustable ramp and current limit
  • Integral bypass versions
  • Motor protection functions

Selection notes

A soft starter reduces starting current and mechanical shock but does not control running speed; if you need speed variation, look at a VFD instead. Select by motor full-load current and the starting duty: a lightly loaded centrifugal pump is an easy start, while crushers, compressors with load, or high-inertia fans need a starter rated for heavy duty with a longer ramp.

  • Duty and starts per hour: check the rated start class and how many starts per hour the unit can take, because heat in the thyristors limits both.
  • Bypass: with an internal or external bypass contactor, heat in the running state disappears, which suits panels with limited ventilation.
  • Control modes: voltage ramp, current limit and torque control; soft stop helps pumps to avoid water hammer.
  • Protection: electronic overload, phase loss and locked-rotor; do not rely on the starter alone without the upstream short-circuit protection recommended by the manufacturer.

A common mistake is selecting by kW and forgetting that a long starting time (for example, 30 seconds) heats the starter far more than a quick start. For very large HT motors see medium voltage soft starters. For fuse and breaker pairing see HRC fuses.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

When should I choose a VFD instead of a soft starter?

Choose a VFD if you need speed control, energy saving through speed reduction, or a very low starting current at the motor terminals. A soft starter is simpler and cheaper where the motor runs at full speed and only the start itself needs softening, and where the extra drive electronics are not justified.

Does a soft starter need a bypass contactor?

Not always, but a bypass removes continuous heat from the thyristors, improves efficiency and extends life, especially in enclosed panels. Many units include it internally. Check whether the protection functions remain active in bypass mode, as this differs between models.

What is a soft starter?

A soft starter is an electronic device that raises the voltage applied to an AC induction motor gradually during starting. This reduces the starting current and the mechanical shock on the motor, coupling and driven machine compared with direct-on-line starting.

What is the difference between a soft starter and a VFD?

A soft starter controls the motor only while starting and stopping, then the motor runs at full line speed, often through a bypass contactor. A VFD controls speed continuously by changing frequency and voltage. Choose a VFD when speed control is required.

How do I select a soft starter for a motor?

Select by motor kW or current and supply voltage. Then consider the starting duty, such as the type of load, ramp time and starts per hour, whether a bypass contactor is needed, and the protection functions you want built in.

Who supplies soft starters in Bangalore?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the ratings you send, such as motor kW, supply voltage and application. A quotation is sent within 24 hours.

Technical specification

Product TypeSoft starter
StandardIEC 60947-4-2
Selection BasisMotor kW / current, supply voltage, start duty, bypass, protection functions
Typical UseSmooth starting of motors
