Industrial Ethernet Switches & Gateways
Industrial network switches and protocol gateways for plant communication.
On request- StandardIEC 61784 / IEEE 802.3

Download specification sheet (PDF)
24 V DC and other DIN-rail switch-mode power supplies for control panels and automation.
Every field is optional - tell us what you know and we will confirm the rest in the quotation.

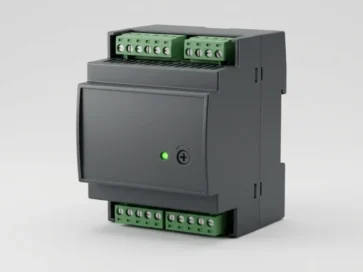

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Also searched as: 24 V DC SMPS, DIN rail SMPS, DIN rail power supply, switch mode power supply, 24V DC power supply for panel, redundancy module for power supply
Size the supply from the real load, not the nameplate of the biggest item. Add up the current of PLC, I/O, HMI, sensors, relays and valves, then add a margin of 20 to 30 percent for growth and ageing. Loads with large inrush, such as capacitive loads or many relay coils switching together, may need a unit with a higher peak current rating.
Protect input and output with correctly rated MCBs and check that the MCB trips on short-circuit for the cable length used. Avoid sharing one supply between sensitive electronics and contactor coils. Use with a PLC or remote I/O system.
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
A margin of about 20 to 30 percent above the calculated load is common practice, which allows for future additions and reduces heating. Heavier inrush loads or high ambient temperatures may need more. Add up the actual connected loads before choosing.
A redundancy module isolates the two supplies so a failure or short circuit in one does not pull down the common 24 V bus. This keeps the control system running while the faulty unit is replaced.
A DIN-rail SMPS is a switch-mode power supply that clips onto a DIN rail inside a control panel. It converts AC supply to a regulated DC output, commonly 24 V DC, for PLCs, sensors, relays and other control devices.
Add the current of every device on the DC line and choose a power supply rated above that total with some margin for future additions. Also check the input voltage range and whether the supply is single or three-phase.
A redundancy module lets two power supplies share a load or back each other up, so that the DC supply continues if one unit fails. It is used for critical control circuits where a loss of control power is not acceptable.
Send the output voltage and current, input supply (single or three-phase and the range), whether a redundancy module is required, and the quantity. Mention the make you prefer. SKE Bharat will prepare a quotation from these details.
| Product Type | Switch-mode power supply |
|---|---|
| Standard | IEC 61204-3, IEC 62368-1 |
| Selection Basis | Output voltage and current, input range, single or three-phase, redundancy module |
| Typical Use | Control-circuit supply |
