Uniline Greenline Series – tower
MARCInverters & UPS in association with MARC Traders
Uniline Greenline Series - tower

Manufacturer brochure · Manufacturer product page

Download specification sheet (PDF)

UnilineOnline UPSSKU SKE-UNL-001

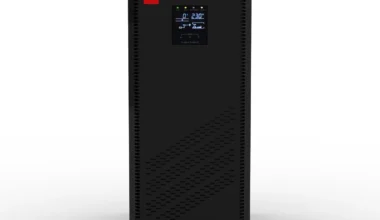

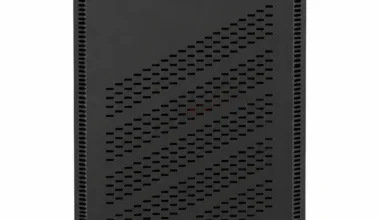

Uniline Greenline Series - tower

Single-phase true online double-conversion tower UPS from 1 to 10 kVA with a built-in static bypass, aimed at servers, networks, security, medical and education loads

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

Overview

Also searched as: Uniline Greenline UPS, Greenline tower UPS, 1 to 10 kVA online UPS, single-phase online double conversion UPS, online UPS with static bypass

Typical applications

  • Computer servers
  • Networks
  • Security systems
  • Medical
  • Education
  • Commercial and infrastructure

Key features

  • Pure sine wave output
  • DSP-controlled IGBT rectifier and inverter
  • Built-in static bypass
  • Cold start
  • Dry contact / RS-232 / EPO port; USB and SNMP options
  • LCD display
  • Surge suppression and EMI/RFI filters
  • Generator compatible
  • Overload, short-circuit and over-temperature protection

Models and ratings

Model Rating Output Battery type Battery voltage
GL 1000 1 kVA / 800 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 24 / 36 / 72 / 96 / 192 / 240 V DC options (per range sheet)
GL 2000 2 kVA / 1600 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 24 / 36 / 72 / 96 / 192 / 240 V DC options (per range sheet)

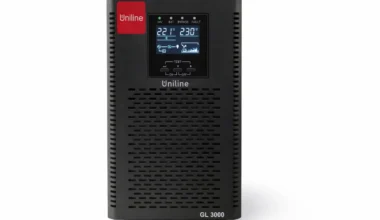

GL 3000 3 kVA / 2400 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 96 V / 192 V DC
GL 5000 5 kVA / 4000 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 96 V / 192 V DC
GL 6000 6 kVA / 4800 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 24 / 36 / 72 / 96 / 192 / 240 V DC options (per range sheet)
GL 7500 7.5 kVA / 7500 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 240 V DC (12 V SMF batteries)
GL 10000 10 kVA / 10000 W 1-phase + N, 220/230/240 V AC Sealed maintenance-free (VRLA/SMF) 240 V DC (12 V SMF batteries)

Ratings are as published by the manufacturer. We confirm the exact model, ratings and warranty in your quotation.

To quote, please share

  • Model or the load / capacity you need
  • Quantity and delivery location
  • Installation details (home, office, plant, solar, telecom)
  • Any specific requirement, such as battery type or backup time

Frequently asked questions

What is a true online double-conversion UPS?

It converts incoming AC to DC and then back to AC, so the load always runs from the inverter. This isolates the load from mains faults and gives a no-break transfer to battery. It suits sensitive electronic loads.

What is a static bypass in a UPS?

A static bypass is an electronic switch that transfers the load directly to mains if the UPS has an overload or fault, without a break in supply. It adds a layer of protection for the connected load.

What loads suit the Uniline Greenline tower UPS?

It is aimed at servers, networks, security systems, medical equipment and education loads. It is a single-phase unit from 1 to 10 kVA. Send your load details so the right rating can be selected.

What details are needed for a quotation?

Send the load in kVA or kW, backup time needed, battery preference and the number of units. SKE Bharat supplies Uniline UPS and prepares the quotation within 24 hours of receiving these details.

Technical specification

BrandUniline
Product TypeOnline UPS
