UnilineOnline UPSSKU SKE-UNL-005

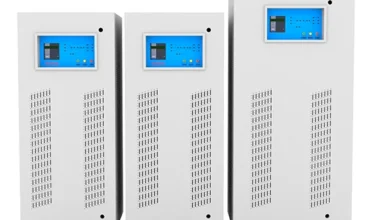

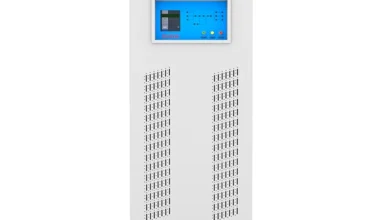

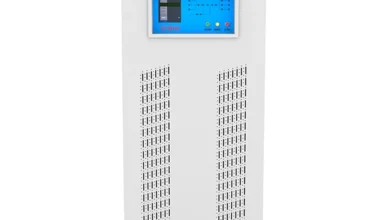

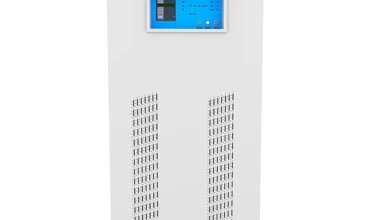

Uniline MaxiPro three-phase - MXP
Heavy-duty three-phase in, three-phase out IGBT online UPS from 3 to 80 kVA with a built-in isolation transformer for demanding Indian power conditions.
Choose your specification
Every field is optional - tell us what you know and we will confirm the rest in the quotation.
Typical applications
- Commercial
- Infrastructure
- Large-backup IT and industrial loads
Key features
- Wide input window
- Generator compatible
- Computer-grade power
- Float-cum-boost charger
- IGBT high-frequency PWM inverter
- Output distortion under 3%
- Crystal-controlled 50 Hz
- RS-232 and SNMP interface (optional)
- Optional static bypass, remote on/off panel, remote indicator, hot standby and parallel redundant mode
Models and ratings
| Model | Rating | Output | Output frequency | Power factor |
|---|---|---|---|---|
| MXP 3303 | 3 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3305 | 5 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3310 | 10 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3315 | 15 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3320 | 20 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3325 | 25 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3330 | 30 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3340 | 40 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3350 | 50 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3360 | 60 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
| MXP 3380 | 80 kVA | 3-phase, 415 V AC, +/-1% | 50 Hz +/-0.1% (crystal controlled) | 0.8 lagging (0.9 optional) |
Ratings are as published by the manufacturer. We confirm the exact model, ratings and warranty in your quotation.
To quote, please share
- Model or the load / capacity you need
- Quantity and delivery location
- Installation details (home, office, plant, solar, telecom)
- Any specific requirement, such as battery type or backup time
Technical specification
| Brand | Uniline |
|---|---|
| Product Type | Online UPS |
