Switchgear PanelsSKU SKE-SWG-005
Auto Change Over Panel
Panels that transfer the load between two sources automatically with electrical and mechanical interlocking.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.

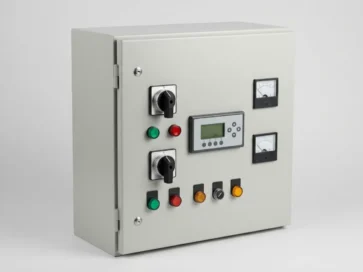

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Two-incomer substations
- Mains to generator transfer
- Critical-load supply
Key features
- Contactor or breaker based
- Interlocked against parallel operation
- Delay and retransfer settings
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | Changeover / ATS |
|---|---|
| Standard | IEC 61439-1/-2 |
| Voltage Class | LT, 415 V |
| Construction | Sheet-steel |
| Protection Degree | IP42 - IP54 |
| Typical Use | Source transfer |
