Switchgear PanelsSKU SKE-SWG-003
AMF Panel
Auto Mains Failure panels that start the generator and transfer the load automatically when mains power fails.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.

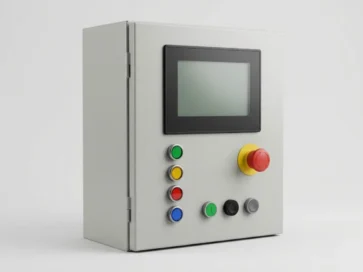

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Hospitals and data centres
- Commercial buildings
- Industrial standby power
Key features
- Automatic start, transfer and re-transfer
- Mains/generator interlocking
- Timers and manual override
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | AMF / generator control |
|---|---|
| Standard | IEC 61439-1/-2 |
| Voltage Class | LT, 415 V |
| Construction | Sheet-steel, wall or floor mounted |
| Protection Degree | IP42 - IP54 |
| Typical Use | Automatic power back-up |
