End Suction (DB / DB Large)

End-suction centrifugal pumps in the DB and DB Large series for water transfer and general industrial service.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

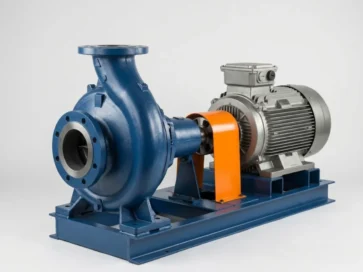

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: DB end suction pump, DB Large end suction pump, end suction centrifugal pump, horizontal end suction water pump, end suction pump for industrial use

Typical applications

  • Industrial water transfer
  • Cooling water
  • Building services

Key features

  • Back pull-out design
  • Wide duty range
  • Standard motor drives

Selection notes

DB and DB Large are two frame sizes in the same family, so the choice is mostly about flow and the power of the motor that will drive the pump. A larger frame carries bigger shafts and bearings and gives higher flow, but needs a larger base and more space around it.

  • Check duty flow and head first and let those pick the frame; choosing a larger frame than needed adds cost without benefit.
  • Confirm the coupling, guard and baseplate are included and that the motor frame suits the baseplate.
  • Align the motor and pump with a dial gauge or laser after grouting and again after pipe connection.
  • Pipe loads should not be transferred to the pump casing; support the pipework independently.

When both frames are close, the lower running cost usually favours the one nearer the best efficiency point at your duty. Before ordering, check suction conditions and the delivery valves. For smaller or compact duties compare the monoblock pump, and for general guidance the centrifugal pump guide.

To quote, please share

  • Flow rate and total head (or pressure)
  • Fluid, temperature and solids content
  • Suction conditions (NPSH available, flooded / lift)
  • Motor / drive preference and supply voltage
  • Materials of construction and any approvals required

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

How do I know whether DB or DB Large is right?

Compare your flow and head with the performance charts of both frames and pick the one that places your duty closest to its best efficiency point, with a motor that fits the base. We can confirm this against your enquiry.

Why does pump-motor alignment matter?

Misalignment makes the coupling and bearings carry extra load, so vibration rises and bearing and seal life fall. Alignment should be checked after grouting and again once the pipes are connected. A motor foot that does not sit flat (soft foot) should also be corrected as part of alignment.

What should be included with the pump set?

Typically the pump, a coupling, a guard, and a baseplate, with the motor mounted or supplied separately. Confirm in your enquiry whether you need the complete set or the bare pump. Spares such as a mechanical seal can also be quoted with the set if required.

What is an end suction pump?

It is a centrifugal pump in which the liquid enters the impeller from one end of the casing, along the shaft axis. It is a common, compact design for water transfer and general industrial service, with an electric motor as the drive.

What is the difference between an end suction pump and a split case pump?

An end suction pump is compact and suits small to medium flows. A split case pump suits large flows, and its casing opens along the shaft axis so the rotating parts can be serviced without disturbing the pipes.

What is the difference between an end suction pump and a multistage pump?

An end suction pump normally has one impeller and is selected for flow at moderate head. A multistage pump has several impellers in series and is selected where a high head or pressure is needed.

How do I select an end suction pump?

Decide the flow and total head, the liquid and temperature, the suction condition and the power supply. Send these to SKE Bharat and the pump size and motor rating will be matched. SKE Bharat prepares the quotation within 24 hours of receiving these details and your make preference.

Technical specification

Pump TypeEnd suction centrifugal
StandardISO 2858 / ISO 5199 (typical)
Typical ServiceWater and general process transfer
OrientationHorizontal
DriveElectric motor (coupled or monoblock)
