HT & LT Power Cables
HT & LT Power Cables

Download specification sheet (PDF)

HT & LT Power CablesSKU SKE-CAB-002

HT & LT Power Cables

Reference price
₹132 excl. GST
*For reference only, based on market listings for similar products. The actual price is confirmed in our quotation. Please send an RFQ for an exact price.

Power cables for carrying electricity from supply to loads, in LT and HT grades with copper or aluminium conductors.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

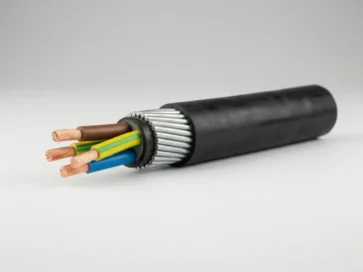

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: XLPE cable, XLPE power cable, LT power cable, HT power cable, 1.1 kV XLPE cable, copper and aluminium power cable

Typical applications

  • Plant and building distribution
  • Motor and transformer feeders
  • Substation and utility connections

Key features

  • Armoured and unarmoured types
  • Flame-retardant options
  • Supplied on drums or cut lengths

Selection notes

Choose cable size by three checks, and use the largest result: current-carrying capacity after installation derating, voltage drop over the route length, and short-circuit withstand for the protective device's clearing time. Selecting by current alone often leaves a long cable with excessive voltage drop or a cable that cannot withstand the fault.

  • Voltage grade: LT cables are commonly 1.1 kV grade; HT cables are graded for 3.3, 6.6, 11, 22 or 33 kV systems. On HT, the earthed or unearthed classification relates to the neutral treatment and the fault clearing time, so confirm with the system designer.
  • Insulation: XLPE allows a higher conductor temperature than PVC and therefore a higher current rating for the same size.
  • Conductor: copper offers better conductivity and smaller size; aluminium is lighter and lower in cost for large feeders but needs proper terminations.
  • Armour and sheath: armoured cable for direct burial and trenches; flame-retardant sheaths where required.

Mistakes include ignoring grouping and soil thermal resistivity, forgetting bending radius, and poor lug selection. Use the motor current and cable calculator as a first check, and see cable lugs and glands for terminations.

To quote, please share

  • Voltage grade and number of cores
  • Conductor size (sq mm) and material
  • Armoured or unarmoured, shielded or unshielded
  • Length required and drum / cut-length preference
  • Installation method (duct, tray, direct burial) and fire-performance requirement

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

How do I choose between XLPE and PVC cables?

XLPE insulation allows a higher operating temperature, so a given size carries more current and withstands short-circuit heating better. PVC is cheaper and common for lower-voltage, lighter duty. HT cables are generally XLPE. Decide on load, voltage and budget.

Why can a cable pass the current rating but still fail the design check?

Current rating is only one criterion. A long run may produce excessive voltage drop, and the cable must also survive the short-circuit current for the time the protection takes to clear it. Check all three, plus installation derating.

What is XLPE cable and why is it used?

XLPE means cross-linked polyethylene, a cable insulation. Compared with PVC it can run at a higher conductor temperature, so a cable of the same size can usually carry more current. It also has good electrical and ageing properties for power distribution.

Which Indian standards apply to power cables?

PVC insulated LT power cables are covered by IS 1554 and XLPE insulated cables by IS 7098. Always state the standard, voltage grade and conductor material in your enquiry so the cable offered matches your specification.

Should I choose a copper or aluminium power cable?

Copper conducts better, so a smaller conductor size carries the same current. Aluminium is lighter and is commonly used for larger sizes, but needs a bigger cross-section and suitable lugs and terminations. Your load and site conditions decide.

What should I send for a power cable quotation?

Send the voltage grade, conductor material, number of cores and size in sq mm, PVC or XLPE insulation, armoured or unarmoured, applicable standard and length. SKE Bharat is based in Rajaji Nagar, Bangalore, and sends a quotation within 24 hours.

Technical specification

Cable TypePower cable, LT and HT
StandardIS 1554 (PVC, LT), IS 7098 (XLPE, HT)
ConductorCopper or aluminium
InsulationPVC or XLPE
Voltage Grade1.1 kV to 33 kV
Typical UsePower distribution to panels, motors and plant
