Cable Lugs & GlandsSKU SKE-CAB-004

Cable Lugs & Glands

Name: Cable Lugs & Glands
Brand: SKE Bharat

Crimp lugs and cable glands for terminating power and control cables.

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

Item / typeSize / ratingMaterialStandardQuantity detailsMakeNotes

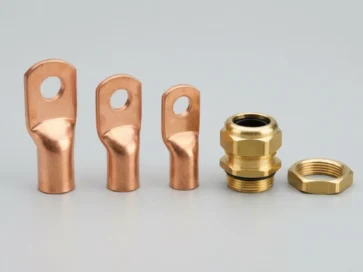

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Typical applications

Panel and motor terminations
Armoured cable entries
Outdoor and hazardous-area entries

Key features

Copper and aluminium lugs
Brass and nickel-plated glands
Double-compression armoured glands

Selection notes

A termination is only as good as the match between conductor, lug and tool. Pick the lug by conductor cross-section in mm² and material, and use the hole size that fits the terminal stud or bolt. Copper conductors take copper (usually tinned) lugs; aluminium conductors need aluminium lugs, and where aluminium meets a copper bus or terminal use a bi-metallic lug or a suitable joint compound as per the supplier's guidance.

Glands: choose by cable outer diameter and armour type. Unarmoured cable needs a simple compression gland; armoured cable needs a double-compression gland that grips the armour and also provides earth continuity.
Thread: confirm metric, PG, BSP or NPT against the equipment entry before ordering.
Protection: outdoor entries need a sealing washer and the right IP rating; hazardous areas need glands certified for that zone and gas group.

Typical faults are undersized lugs on stranded conductors, the wrong crimp die, and missing armour clamping. Use matching crimping and termination tools and check that every crimp is complete before energising.

To quote, please share

Rating (current / voltage / capacity) and quantity
Standard and approvals required
Application and installation environment
Preferred make, if any (we confirm what we can supply)
Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

Can I use a copper lug on an aluminium cable?

Not directly. Copper and aluminium together can corrode and heat up at the joint. Use an aluminium lug, or a bi-metallic lug where the cable meets a copper surface, together with the jointing practice recommended by the manufacturer. Confirm the arrangement with your site engineer.

How do I select a cable gland size?

Measure the outer diameter of the cable over its sheath, and for armoured cable also the armour type and wire diameter. Pick the gland whose range covers both, then match the entry thread of the enclosure. Mention hazardous-area zone and ingress protection needs when you request a quotation.

Technical specification

Product Type	Cable lug / gland
Standard	IS 8309 (lugs), IEC 62444 (glands)
Selection Basis	Cable size, conductor material (Cu / Al), hole size, gland thread and type (armoured / unarmoured), IP
Typical Use	Cable terminations
