MCB (Miniature Circuit Breaker)
MCB (Miniature Circuit Breaker)

Download specification sheet (PDF)

Circuit BreakersSKU SKE-SWC-001

MCB (Miniature Circuit Breaker)

Reference price
₹181 excl. GST
*For reference only, based on market listings for similar products. The actual price is confirmed in our quotation. Please send an RFQ for an exact price.

Miniature circuit breakers for overload and short-circuit protection of final circuits in distribution boards.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

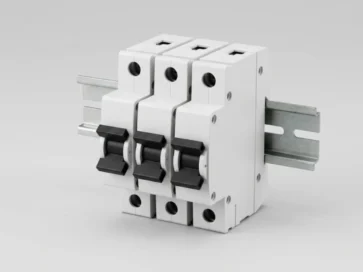

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: miniature circuit breaker, MCB switch, MCB breaker, modular MCB, single pole and three pole MCB

Typical applications

  • Lighting and power distribution boards
  • Control panels
  • Commercial buildings

Key features

  • Single to four poles
  • B, C and D tripping curves
  • DIN-rail mounting

Selection notes

The tripping curve decides how the MCB reacts to inrush. A B curve trips at about 3 to 5 times rated current and suits lighting and resistive loads; a C curve trips at about 5 to 10 times and is the usual choice for mixed loads and small motors; a D curve trips at about 10 to 20 times and suits transformers and high inrush equipment.

  • Rating: pick a current rating that protects the cable, which means it must not exceed the cable's current-carrying capacity after derating.
  • Breaking capacity: choose 6 kA or 10 kA (or higher) according to the prospective fault current at the board; a higher value is needed close to a transformer.
  • Poles: single pole, double pole, three pole or four pole according to the circuit.
  • DC use: only use MCBs explicitly rated for DC, with the stated voltage and polarity rules.

Mistakes include running MCBs at full rating in packed boards without derating, and swapping to a larger MCB to stop nuisance tripping rather than finding the cause. For earth-leakage protection combine with an RCCB or RCBO. Larger circuits move to MCCBs.

To quote, please share

  • Rating (current / voltage / capacity) and quantity
  • Standard and approvals required
  • Application and installation environment
  • Preferred make, if any (we confirm what we can supply)
  • Datasheet or drawing reference, if you have one

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the difference between B, C and D curve MCBs?

They differ in how many times the rated current is needed for instantaneous tripping: B about 3 to 5 times, C about 5 to 10 times, D about 10 to 20 times. Use B for lighting, C for general and motor loads, and D for high inrush equipment.

Can I use an AC MCB on a DC circuit?

Only if the datasheet specifies DC ratings. DC arcs are harder to extinguish and a standard AC MCB may fail to break the circuit safely. Use a DC-rated MCB with the correct voltage rating and observe polarity if stated.

What is the full form of MCB and what does it do?

MCB stands for Miniature Circuit Breaker. It automatically switches off a circuit on overload or short circuit and can be reset once the fault is cleared, unlike a fuse. It is used in distribution boards for lighting, small power and control circuits.

How does an MCB work?

A bimetallic strip bends under sustained overload current and trips the breaker. A magnetic coil trips it instantly on a short circuit. An arc chute then extinguishes the arc formed when the contacts open.

What are B, C and D curve MCBs?

The curve shows how fast the MCB trips on high current. B trips at about 3 to 5 times rated current for resistive loads, C at 5 to 10 times for general use and small motors, and D at 10 to 20 times for high inrush loads.

Who supplies MCBs in Bangalore?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the ratings you send, so share your requirement and we will respond within 24 hours.

Technical specification

Product TypeMiniature circuit breaker
StandardIS/IEC 60898-1 (domestic), IEC 60947-2 (industrial)
Selection BasisPoles, current rating, tripping curve (B / C / D), breaking capacity
Typical UseLighting, small-power and control circuits
