Solid Handling Non-Clog (SHM-SHD)

Solid-handling non-clog pumps of the SHM / SHD series for liquids with large solids, slurries and sludge.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

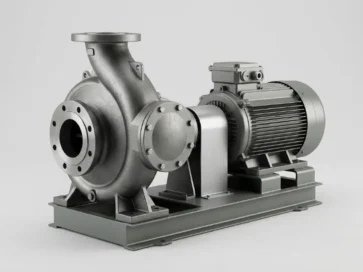

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: SHM SHD non-clog pump, solid handling pump, slurry and sludge pump, trade effluent pump, SHM series pump, SHD series pump

Typical applications

  • Sewage and effluent plants
  • Sludge and slurry transfer
  • Industrial wastewater

Key features

  • Wide-passage impeller
  • Wear-resistant options
  • Easy clean-out access

Selection notes

Slurries and sludges behave differently from sewage. Concentration, particle size and abrasiveness drive wear, and thick mixtures lower the head and flow a pump produces compared with its water curve. Always state the percentage of solids and whether they are hard (grit, ash, scale) or soft (organic sludge).

  • Ask how the pump performance is corrected for slurry; a clear-water curve overstates what a dense mixture will deliver.
  • Specific gravity of the mixture raises motor power, so size the motor on the mixture and not on water.
  • Wear parts such as the impeller, casing liner and wear ring should be chosen for the abrasion; they will need periodic replacement and spares planning.
  • Plan seal flushing where solids could reach the seal faces.

For lighter solids duty, the SHL non-clog pump may be enough. If the pump will sit inside a pit, consider the NS submersible sewage pump. A slow, steady design usually lasts longer than a fast, compact one on abrasive service.

To quote, please share

  • Flow rate and total head (or pressure)
  • Fluid, temperature and solids content
  • Suction conditions (NPSH available, flooded / lift)
  • Motor / drive preference and supply voltage
  • Materials of construction and any approvals required

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What details are needed to select a slurry or sludge pump?

Provide the percentage solids by weight, particle size and hardness, specific gravity of the mixture, temperature, flow, head and the piping layout. A sample description or lab analysis helps us judge viscosity and wear. Also say how the slurry is produced, because process changes can alter concentration.

Why does slurry reduce pump performance?

Solids and higher viscosity increase internal friction, so the pump develops less head and flow and draws more power than on water. The effect grows with concentration and particle size. Selection should apply a correction rather than using the clear-water curve.

How often do wear parts need replacing?

It depends on how abrasive the solids are, pump speed and operating hours, so there is no fixed interval. Keep spare wear rings and an impeller on hand and inspect on a schedule based on your own experience of the duty.

What is a solid-handling non-clog pump?

It is a pump built to pass liquids with large solids, slurries and sludge without blocking. It is used for sewage, trade effluent and similar duties where an ordinary pump would clog.

What are the SHM and SHD series pumps?

SHM and SHD are series of solid-handling non-clog pumps. They are horizontal pumps with an electric motor, coupled or monoblock, for sewage, slurries and trade effluent. Confirm the model from your duty.

How do I choose a pump for sewage or slurry?

Give the liquid type, size of the largest solid, percentage of solids, flow and total head. Also tell us the temperature and the nature of the solids, as these affect impeller type and materials.

What details are needed for a quotation?

Send the liquid, solid content and maximum solid size, flow, total head, temperature, power supply and installation conditions. Price depends on model, duty and quantity. Quotations are prepared from the details you send, so share your requirement and SKE Bharat will respond within 24 hours.

Technical specification

Pump TypeSolid-handling, non-clog
StandardTo specification
Typical ServiceSewage, slurries, trade effluent
OrientationHorizontal
DriveElectric motor (coupled or monoblock)
