Vertical hollow-shaft motors that couple directly to vertical turbine and deep-well pumps, with a non-reverse ratchet where required.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

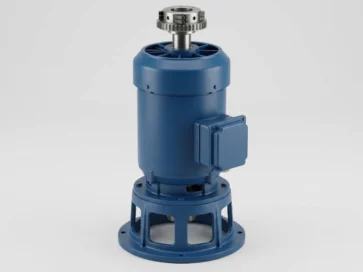

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: VHS motor, vertical hollow shaft motor for deep well pump, hollow shaft vertical motor, vertical turbine pump motor, hollow shaft pump motor

Typical applications

  • Vertical turbine pumps
  • Deep-well and borewell pumps
  • Raw-water and cooling-water pumping

Key features

  • Hollow shaft with self-release coupling option
  • Non-reverse ratchet (NRR) to prevent back-spin
  • Thrust bearing sized for pump load

Selection notes

This motor sits on top of a vertical turbine or deep-well pump and carries the pump's thrust, so pump data decides the selection. Collect pump power at the duty point, speed, total thrust (including down thrust at start and upthrust), and the shaft coupling arrangement.

  • Thrust bearing: make sure its capacity covers the maximum pump thrust with a margin, including during starting.
  • Non-reverse ratchet: prevents the pump spinning backwards when the water column falls after a stop. If the motor starts again during back-spin, shaft and impeller can be damaged, so add a restart delay in the control.
  • Shaft and coupling: hollow shaft dimension and the self-release coupling must fit the pump head shaft. See vertical turbine pumps.

Mistakes include choosing by kW alone, ignoring the starting method (soft-start can reduce shock), and incorrect adjustment of impeller lift. Install the motor on a rigid base and align. Check rotation before coupling. Compare with a standard closed cage motor if the pump is horizontal. Confirm details with a qualified engineer.

To quote, please share

  • Rated power (kW) and speed / poles
  • Supply voltage, frequency and starting method (DOL / star-delta / soft starter / VFD)
  • Mounting arrangement, frame and shaft details
  • Enclosure, ambient temperature and hazardous-area classification
  • Duty cycle (continuous / intermittent) and load type

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the non-reverse ratchet for?

When a vertical pump stops, the water column falls back and spins the pump backwards. The ratchet blocks reverse rotation. Without it, a quick restart could occur against back-spin, which can damage couplings and shafts.

How is a hollow shaft motor coupled to the pump?

The pump's head shaft passes through the hollow motor shaft and is held at the top by a coupling nut, which also sets the impeller lift. The arrangement needs the correct shaft dimensions from the pump maker.

What is a vertical hollow shaft motor?

A vertical hollow shaft motor has a hollow rotor shaft through which the pump line shaft passes, and the pump shaft is secured at the top. It couples directly to vertical turbine and deep well pumps.

What is a non-reverse ratchet in a hollow shaft motor?

A non-reverse ratchet stops the motor from spinning backwards when the pump stops and the water column flows back down the pipe. It protects the pump shaft and prevents damage if the pump is restarted during reverse rotation.

How do I select a vertical hollow shaft motor?

Match the power in kW to the pump with margin, and check speed, pump shaft diameter, thrust load, flange and mounting dimensions. The motor mounts vertically and runs on continuous duty.

What details are needed for a vertical hollow shaft motor quotation?

Send the power in kW or HP, speed or poles, voltage, pump shaft diameter, thrust load, enclosure (IP23 or IP55) and whether the non-reverse ratchet is needed. Price depends on rating, make and quantity, so send details for a quotation, which SKE Bharat prepares within 24 hours.

Technical specification

Motor TypeAC induction, vertical
StandardIS 12615 (energy-efficient), IEC 60034
Enclosure / ProtectionIP23 / IP55
MountingV1 vertical flange, hollow shaft
DutyS1 continuous
Voltage ClassLT: 415 V, 3-phase, 50 Hz
RotorSquirrel cage
