Drawout MCC Panel

Name: Drawout MCC Panel
Brand: SKE Bharat

Motor control centres with withdrawable feeder modules for fast replacement without shutting down the bus.

Describe what you need

Made to order against your specification. Fill what you know; our engineers will confirm the rest.

Panel type / applicationSystem voltageIncomer / bus ratingFault levelFeeders / sectionsConstructionForm of separationEnclosureBusbar materialInstallationComponents makeNotes

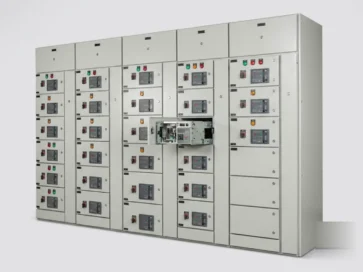

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Typical applications

Process plants and utilities
Steel, cement and chemicals
Continuous-process sites

Key features

Draw-out modules, test and service positions
Form 3 / 4 separation options
Safe maintenance access

To quote, please share

Single-line diagram and incomer / feeder schedule
System voltage, fault level (kA) and busbar rating
Switching devices and make preference
Indoor / outdoor, IP degree and ambient
Metering, protection and communication requirements

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Technical specification

Panel Type	Draw-out MCC
Standard	IEC 61439-1/-2, form of separation per spec
Voltage Class	LT, 415 V
Construction	Compartmentalised, withdrawable
Protection Degree	IP42 - IP54
Typical Use	Motor control
