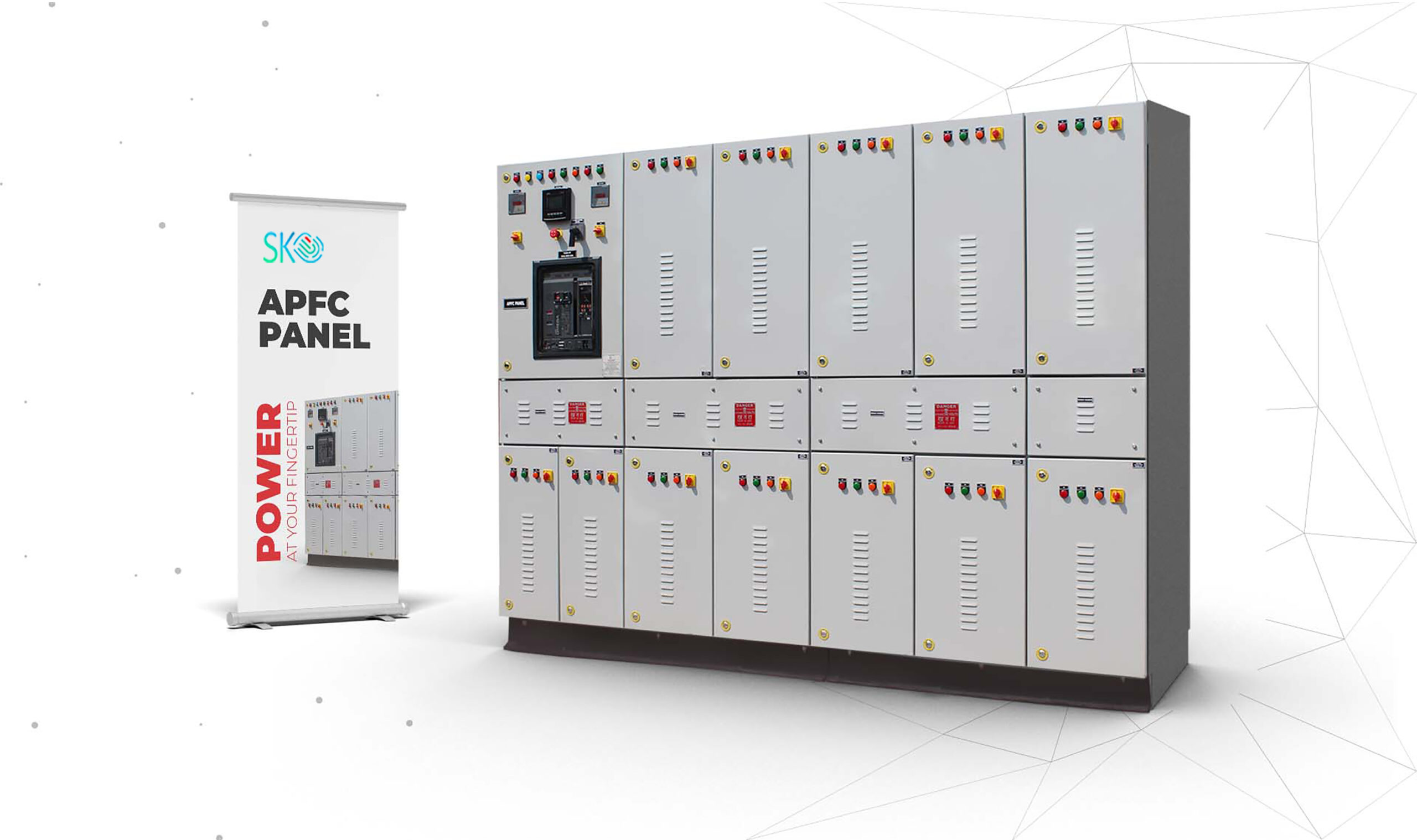

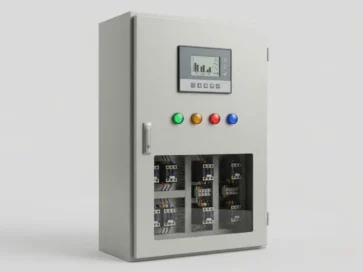

APFC Panel
Automatic Power Factor Correction panels that switch capacitor banks to hold power factor near unity and avoid utility penalties.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.
Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Industrial plants
- Commercial buildings
- Utility penalty avoidance
Key features
- Automatic controller with step switching
- Detuned reactors for harmonics
- Capacitor protection
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | APFC |
|---|---|
| Standard | IEC 61439-1/-2 |
| Voltage Class | LT, 415 V |
| Construction | Sheet-steel, floor mounted |
| Protection Degree | IP42 - IP54 |
| Typical Use | Power factor correction |
