NVR Panel
NVR Panel

Download specification sheet (PDF)

Solar ProductsSKU SKE-SOL-006

NVR Panel

Control panel built to your drawing for the NVR requirement of the installation.

On request

Describe what you need

Made to order against your specification. Fill what you know; our engineers will confirm the rest.

WhatsApp

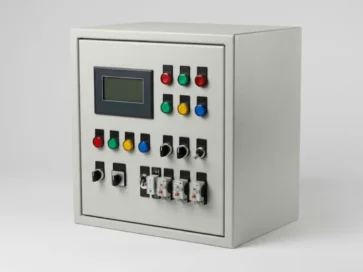

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: NVR control panel, NVR box, CCTV NVR panel, NVR rack enclosure, NVR power and control panel

Typical applications

  • Solar plant auxiliary systems
  • Monitoring and security loads
  • Project-specific panels

Key features

  • Built to your single-line and BOM
  • Standard components from major makes
  • Routine testing before dispatch

Selection notes

This panel is built to your drawing for the NVR (network video recorder) requirement of the installation, and the existing description places it with monitoring and security loads. Begin by writing down exactly what the panel must supply or control, so the protection and supply arrangement can be matched.

  • List each load with its voltage and current, then add spare capacity for future cameras or devices.
  • Decide whether the loads need a backup source; for equipment that should not restart or lose data, a UPS feed from the panel is common.
  • Provide a surge protection device on the incomer and a clean earth, as electronics fail easily to surges.
  • Use small MCBs or RCBOs per outgoing circuit so one fault does not drop everything.
  • Check ventilation and enclosure rating for the ambient temperature.

Send the single-line diagram, the load list and the mounting environment. See surge protection devices and online UPS for the protection and backup options, and MCBs for the outgoing circuits.

To quote, please share

  • System size (kWp) and inverter details
  • String / array configuration and DC voltage
  • Number of inputs and outputs
  • Indoor / outdoor mounting and ambient
  • Monitoring and protection requirements

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What should I send for an NVR panel quotation?

The single-line diagram or load list with voltages and currents, number of outgoing circuits, any UPS or backup arrangement, mounting location and environment, and preferred component makes. A photograph of the existing arrangement, where one exists, also helps.

Do monitoring and security loads need surge protection?

Electronic equipment is sensitive to surges and spikes, so a surge protection device at the incomer and good earthing are strongly advised. The right type depends on the site and cable runs. Good earthing makes the surge device effective, so check earth resistance too.

Why use a UPS with this kind of panel?

A UPS keeps sensitive equipment running through short outages and avoids shutdown damage or data loss. The size depends on the connected load and the backup time you need. Include all connected loads in the list so the UPS is sized for the whole panel.

What is the full form of NVR in a panel?

NVR stands for Network Video Recorder. It records video from IP cameras over a network. An NVR panel is the enclosure that houses the recorder along with its power supply, protection and wiring for a CCTV or surveillance installation.

What is the difference between an NVR panel and an NVR patch panel?

An NVR panel is an enclosure that houses the recorder with its power and protection. A patch panel is a passive termination unit for network cables, usually mounted in a rack. The two can be fitted together inside one enclosure if the drawing asks for it.

What details are needed for an NVR panel quotation?

Send your drawing or sketch, the recorder and switch models to be housed, power supply and protection needs, cable entry details, mounting type and the protection degree required for the location. SKE Bharat prepares the quotation within 24 hours.

Who supplies NVR panels in Bangalore?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the details you send, within 24 hours. The panel is built to your drawing.

Technical specification

Product TypeControl panel (NVR)
StandardIEC 61439
Voltage ClassAs per specification
ConstructionSheet-steel
Protection DegreeIP42 - IP54
Typical UseAs per drawing
