Power Transformer
Power Transformer

Download specification sheet (PDF)

TransformersSKU SKE-TRF-007

Power Transformer

Power transformers for step-up and step-down duty in substations and generation plants.

On request

Describe what you need

Made to order against your specification. Fill what you know; our engineers will confirm the rest.

WhatsApp

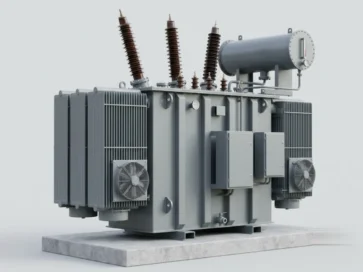

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: substation transformer, step up transformer, 33 kV power transformer, OLTC power transformer, oil filled power transformer

Typical applications

  • 33/11 kV and higher substations
  • Generating stations
  • Heavy industrial incomers

Key features

  • OLTC with automatic voltage regulation
  • Full protection accessories
  • Routine and type tests

Selection notes

Power transformers at substation level are engineered to the system, so assemble the study data first: MVA rating, voltage ratio, impedance, vector group, cooling method and tap-changing range. Without these, quotations are not comparable.

  • Tap changer: an on-load tap changer (OLTC) with an automatic voltage regulator holds voltage as the load changes; an off-circuit changer needs a shutdown to change taps.
  • Impedance: it limits the fault current on the secondary side and affects voltage regulation, so match it to the switchgear ratings. Parallel operation needs the same vector group and voltage ratio, and closely matched impedance.
  • Cooling: natural or forced oil and air cooling modes change the continuous rating.
  • Protection: Buchholz relay, pressure relief device and temperature indicators are usual fittings on oil units.

Mistakes include choosing capacity without a loading profile, ignoring site transport limits and foundation needs, and not checking oil containment and fire walls. For lower-voltage supply duty see the distribution transformer, and for the highest voltages see EHV transformers. Standards such as IEC 60076 apply; confirm with a qualified engineer.

To quote, please share

  • kVA / MVA rating and phases
  • Primary / secondary voltage and frequency
  • Vector group, impedance and tap range
  • Cooling and installation (indoor / outdoor, altitude, ambient)
  • Applicable standard and test requirements

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

What is the role of an on-load tap changer?

It adjusts the winding ratio while the transformer is energised, so secondary voltage can be held steady as grid voltage or load changes. An automatic voltage regulator drives it. Without OLTC, taps are changed off-circuit, requiring an outage.

What data is needed to quote a power transformer?

MVA rating, HV and LV voltages, frequency, vector group, impedance, tapping range, cooling type, installation location and applicable standards. Include protection requirements and any special tests. Load profile and site access details also help the engineers confirm the proposed rating.

What is a power transformer and what does it do?

A power transformer transfers power between voltage levels in generating stations and transmission substations. At generation it steps voltage up so that current and losses in transmission are lower, and at substations it steps voltage down for onward distribution.

How is a power transformer different from a distribution transformer?

A power transformer is used at higher voltage and rating in substations and is generally operated close to full load. A distribution transformer works at lower voltage nearer the consumer and is loaded variably through the day.

What are the types of power transformer?

They are classified by duty, such as step-up or step-down, by number of phases, by cooling method such as ONAN and ONAF, and by tap changer, which can be off-circuit or on-load (OLTC).

What details are needed to quote a power transformer?

Send the MVA rating, HV and LV voltage, vector group, impedance, cooling type, tap changer range, applicable standard and required accessories. Quotations are prepared within 24 hours of receiving the details.

Technical specification

Transformer TypeOil immersed, power
CoolingONAN / ONAF
StandardIS 2026 / IEC 60076
Voltage Class33 kV to 220 kV class
Vector GroupPer system
Tap ChangingOn-load tap changer (OLTC)
