Switchgear PanelsSKU SKE-SWG-021
Synchronizing Panel
Panels that match voltage, frequency and phase so generators or sources can be paralleled safely.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.

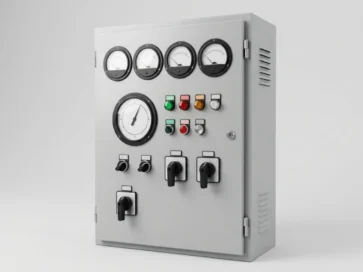

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Multi-generator sites
- Captive power plants
- Grid-parallel operation
Key features
- Auto / manual synchronising
- Load sharing and reverse-power protection
- Synchroscope and lamps
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | Synchronising panel |
|---|---|
| Standard | IEC 61439-1/-2 |
| Voltage Class | LT, 415 V (HT on request) |
| Construction | Sheet-steel, floor mounted |
| Protection Degree | IP42 - IP54 |
| Typical Use | Generator and source paralleling |
