VFD and Soft Starter Panel

Panels housing variable-frequency drives or soft starters with the associated protection and control.

On request

Describe what you need

Made to order against your specification. Fill what you know; our engineers will confirm the rest.

WhatsApp

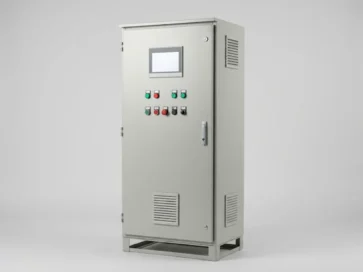

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: VFD panel, variable frequency drive panel, AC drive panel, soft starter panel, VFD control panel

Typical applications

  • Pumps, fans and blowers
  • Conveyors and mixers
  • Energy-saving retrofits

Key features

  • Bypass options
  • Input/output reactors and filters
  • Cooling and ventilation design

Selection notes

Start with the reason for the panel. A soft starter reduces starting current and mechanical shock but runs the motor at full speed afterwards. A variable-frequency drive also controls speed, which saves energy on pumps and fans because power falls roughly with the cube of speed.

  • Size the drive or starter on the motor's rated current, not only kW, and allow for overload duty such as crushers or conveyors.
  • A bypass contactor on a soft starter takes it out of circuit once the motor is at speed, which cuts heat and losses in the panel.
  • Long motor cables may need output filters; drive harmonics may need line reactors or filters.
  • Panel ventilation or cooling must remove drive losses; overheated drives trip or age quickly.
  • Include short-circuit protection suited to the device, as the maker specifies.

Provide motor kW, voltage, load type and duty cycle. See variable frequency drives and soft starters for the devices, and use the VFD energy savings calculator to estimate savings.

To quote, please share

  • Single-line diagram and incomer / feeder schedule
  • System voltage, fault level (kA) and busbar rating
  • Switching devices and make preference
  • Indoor / outdoor, IP degree and ambient
  • Metering, protection and communication requirements

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

When should I choose a drive instead of a soft starter?

Choose a drive when the load needs speed control or the process benefits from variable flow, as with pumps and fans. A soft starter is enough when you only need a gentle start at fixed speed.

Why is panel cooling important for drives?

Drives lose some power as heat inside the panel. If heat cannot escape, the drive derates or trips and its capacitors age faster. Ventilation or air conditioning must be sized for the losses. The drive manual gives the heat loss figure used to size cooling.

Does a bypass contactor help a soft starter?

Yes. Once the motor reaches full speed, the bypass takes the starter's power electronics out of circuit, which reduces heat and losses. Many panels include one as standard. Bypass operation can also let the motor run directly if the starter needs repair, provided the design includes the necessary protection.

What is a VFD panel and what is the full form of VFD?

VFD stands for Variable Frequency Drive. The panel houses the drive with its input protection, contactors and control wiring, and it controls motor speed by varying the frequency and voltage supplied to the motor.

How does a VFD work?

The drive converts incoming AC to DC in a rectifier section, then an inverter section builds AC of adjustable frequency and voltage. Changing the frequency changes motor speed, and the controlled ramp also limits starting current.

What is the difference between a VFD and a soft starter?

A soft starter only ramps up voltage to reduce starting current and torque, and the motor then runs at full speed. A VFD controls speed throughout the running period, so it is chosen where speed must change with the process.

Who supplies VFD panels in Bangalore?

SKE Bharat is a supplier based in Rajaji Nagar, Bangalore, supplying across India. Quotations are prepared from the ratings you send, so share your requirement and we will respond within 24 hours. VFD panels are built to your specification.

Technical specification

Panel TypeVFD / soft-starter panel
StandardIEC 61439-1/-2, IEC 61800
Voltage ClassLT, 415 V
ConstructionSheet-steel, ventilated
Protection DegreeIP42 - IP54
Typical UseSpeed control and soft starting
