Electrical Junction Box

Enclosures for cable terminations, branching and instrument signals in plant and field installations.

On request

Choose your specification

Every field is optional - tell us what you know and we will confirm the rest in the quotation.

WhatsApp

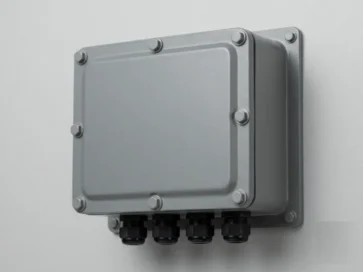

Representative image. The actual product, make and appearance depend on the supplier and your specification.

Overview

Also searched as: junction box, electrical JB, cable junction box, terminal junction box, instrument junction box, plant junction box

Typical applications

  • Plant and field wiring
  • Instrument signal junctions
  • Outdoor cable termination

Key features

  • Sealed gland plates
  • Weatherproof options
  • Terminal blocks as specified

Selection notes

A junction box looks simple, but the wrong enclosure fails early through water ingress or overheated terminals. First separate the purpose: power cable termination, control wiring, or low-level instrument signals. Instrument and power signals should not share a box without segregation.

  • Terminal blocks: size them for the cable cross-section and current, and leave spare terminals for later changes.
  • Gland plate: specify the number and size of entries, and use proper cable glands suited to the cable type so the IP rating is preserved.
  • Enclosure material: choose sheet steel, stainless steel or another material for the environment, such as outdoor, washdown or corrosive atmosphere.

Mistakes include drilling extra holes in the field without sealing, mixing intrinsically safe and non-safe wiring, and overcrowding. If the box is in a hazardous area, it needs suitable certification; state the zone and gas group. Instrument runs often use instrumentation cables. Confirm earthing of the enclosure and tag every terminal in the schedule.

To quote, please share

  • Single-line diagram and incomer / feeder schedule
  • System voltage, fault level (kA) and busbar rating
  • Switching devices and make preference
  • Indoor / outdoor, IP degree and ambient
  • Metering, protection and communication requirements

Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.

Frequently asked questions

How do I decide the size of a junction box?

Count the terminals needed, add spares, and allow room for cable bending and gland entry. Cramped boxes overheat and make maintenance hard. Send the cable list with cross-sections and signal types and we can propose a suitable size and layout.

Can instrument and power cables share one junction box?

It is better to avoid it. Power circuits can induce noise on low-level signals. If space forces a shared box, use separate compartments or barriers. Your instrument designer should define segregation, and hazardous-area boxes need specific certification.

What is an electrical junction box?

An electrical junction box is an enclosure in which cables are terminated, joined or branched. It protects the connections from dust and water and keeps them safe and accessible. It is used in plants and in field installations for power and signal cables.

What are the types of electrical junction boxes?

They can be made of sheet steel or GRP, and are used for power cables or for instrument signals. They differ in size, number of terminals, cable entries and protection degree for indoor or outdoor use.

What is the difference between a junction box and a distribution box?

A junction box is mainly for terminating and branching cables. A distribution box houses protective devices such as breakers and feeds several circuits. The two are different in function though the enclosure may look similar.

What details are needed for a junction box quotation?

Send the enclosure size or number of terminals, cable entries, voltage, power or signal use, material (sheet steel or GRP), protection degree and mounting type. SKE Bharat prepares the quotation within 24 hours.

Technical specification

Panel TypeJunction box
StandardIEC 61439 / IEC 60529
Voltage ClassLT / signal
ConstructionSheet-steel or GRP
Protection DegreeIP55 - IP66
Typical UseCable termination and branching
