PCC Panel
Power control centres - the main LV switchboard fed from the transformer, distributing power to MCCs and large loads.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.

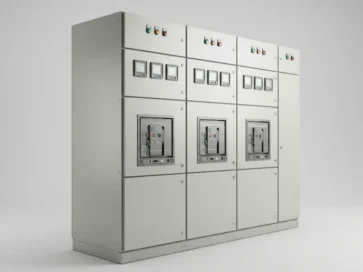

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Plant main incomers
- Industrial substations
- Large commercial sites
Key features
- ACB incomers with MCCB outgoing
- High short-circuit withstand
- Metering and protection
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | Power control centre |
|---|---|
| Standard | IEC 61439-1/-2 |
| Voltage Class | LT, 415 V |
| Construction | Compartmentalised, floor mounted |
| Protection Degree | IP42 - IP54 |
| Typical Use | Main LV power distribution |
