RedonLithium-ion BatteriesSKU SKE-RDN-003
Redon RedONstacK ESS & High Voltage Series
Floor-standing modular LiFePO4 battery stacks built from 51.2 V / 100 Ah / 5.12 kWh modules, scalable from about 5 kWh to over 80 kWh at 51.2 V and to high-voltage strings up to 614.4 V
Choose your specification
Every field is optional - tell us what you know and we will confirm the rest in the quotation.

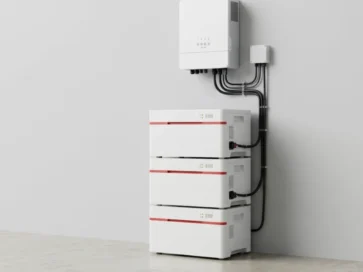

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Home energy storage
- Solar hybrid systems
- Commercial backup
- Compatible with major UPS and inverters
Key features
- Modular stackable plug-and-play design
- Built-in 125 A / 500 Vdc circuit breaker with emergency-stop contactor
- 100 A continuous discharge
- Automatic module networking and real-time monitoring
- Communication: CAN2.0, RS484 as printed (likely RS485); OTA update with GPS+GSM optional
- Cycle life >=2500 (0.5C/0.5C, 90% DoD, 70% EOL)
- Certification: BIS IS 16046 (Part 2):2018 / IEC 62133-2:2017 (module level)
- Operating temperature -20 to 55 C, IP20 enclosure
Models and ratings
| Model | Rated DC power | Battery units (as printed) | Nominal energy | Usable energy (90% DoD) |
|---|---|---|---|---|
| REDONSTACK 51.2V 100Ah (1-16 modules) | 4.6 kW | 16 (8+8) two column | 5.12 to 81.9 kWh | 4.6 kWh |
| REDONSTACK 121.6V 100Ah | 9.801 kW | 4 | 12.1 kWh | 10.89 kWh |
| REDONSTACK 192V 100Ah | 15.552 kW | 5 | 19.2 kWh | 17.28 kWh |
| REDONSTACK 240V 100Ah | 19.44 kW | 6 | 24 kWh | 21.6 kWh |
| REDONSTACK 384V 100Ah | 31.104 kW | 9 | 38.4 kWh | 34.56 kWh |
| REDONSTACK 614.4V 100Ah | 49.734 kW | 13 (6+7) two column | 61.4 kWh | 55.26 kWh |
Ratings are as published by the manufacturer. We confirm the exact model, ratings and warranty in your quotation.
To quote, please share
- Model or the load / capacity you need
- Quantity and delivery location
- Installation details (home, office, plant, solar, telecom)
- Any specific requirement, such as battery type or backup time
Technical specification
| Brand | Redon |
|---|---|
| Product Type | Lithium-ion Batteries |
