Neutral Grounding Resistor Panels
Resistor panels that limit earth-fault current at the transformer or generator neutral.
Describe what you need
Made to order against your specification. Fill what you know; our engineers will confirm the rest.

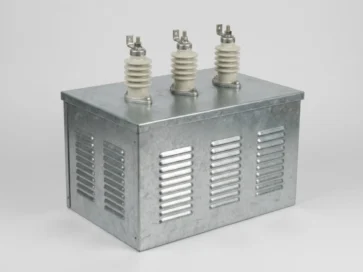

Representative image. The actual product, make and appearance depend on the supplier and your specification.
Typical applications
- Generator and transformer neutrals
- Industrial HV systems
- Substations
Key features
- Stainless-steel resistor elements
- Monitoring relay options
- Rated for fault duration
To quote, please share
- Single-line diagram and incomer / feeder schedule
- System voltage, fault level (kA) and busbar rating
- Switching devices and make preference
- Indoor / outdoor, IP degree and ambient
- Metering, protection and communication requirements
Ratings, dimensions and certification are confirmed against your enquiry. Use Send an enquiry and our engineers will respond within 24 hours.
Technical specification
| Panel Type | Neutral grounding resistor (NGR) |
|---|---|
| Standard | IEEE 32 / IEC 60076-25 |
| Voltage Class | LT to HT |
| Construction | Ventilated enclosure |
| Protection Degree | IP23 - IP54 |
| Typical Use | Earth-fault current limiting |
